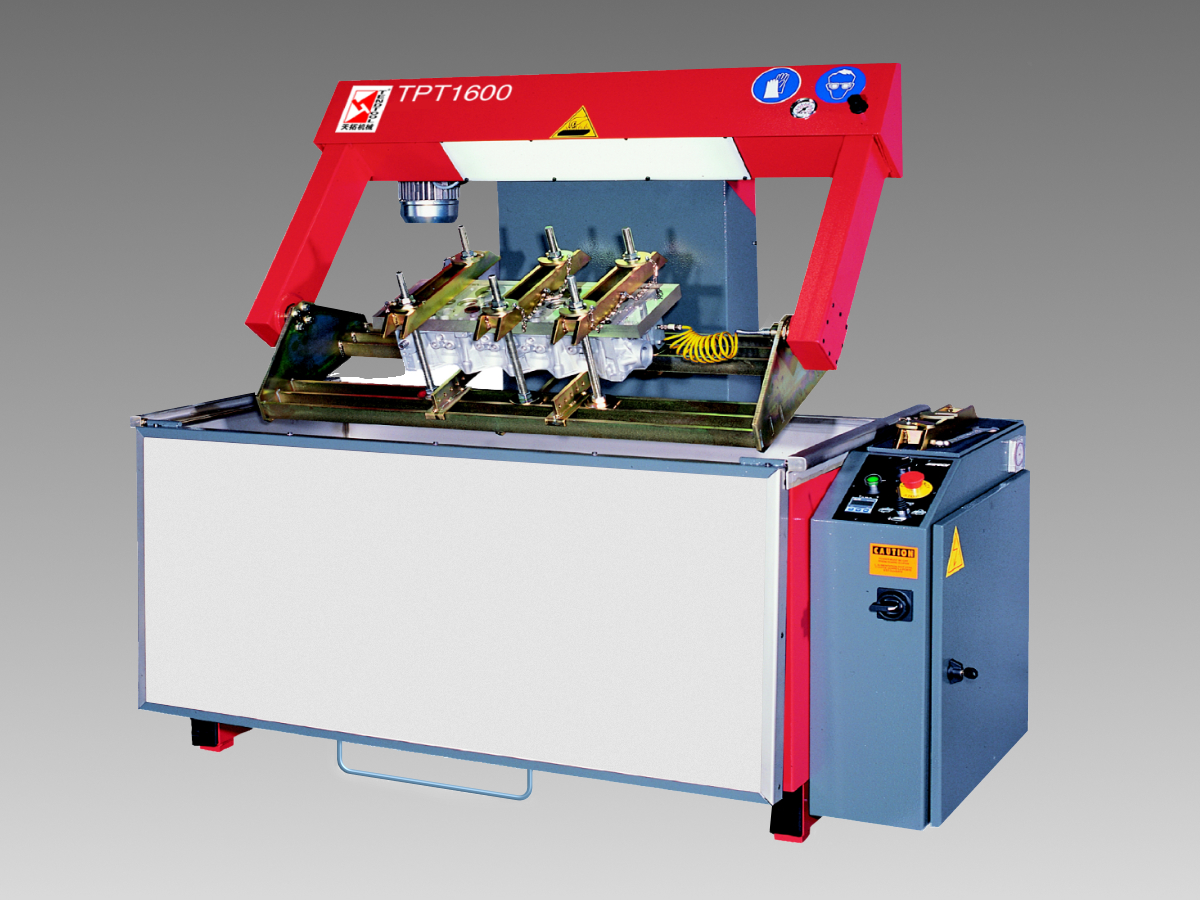

Cylinder Head Pressure Tester TPT1600/TPT1600L
Easy and efficient pressure test of cylinder head and cylinder block coolant circuits. Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.
* 360° Electric powered roll-over fixture.
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control.

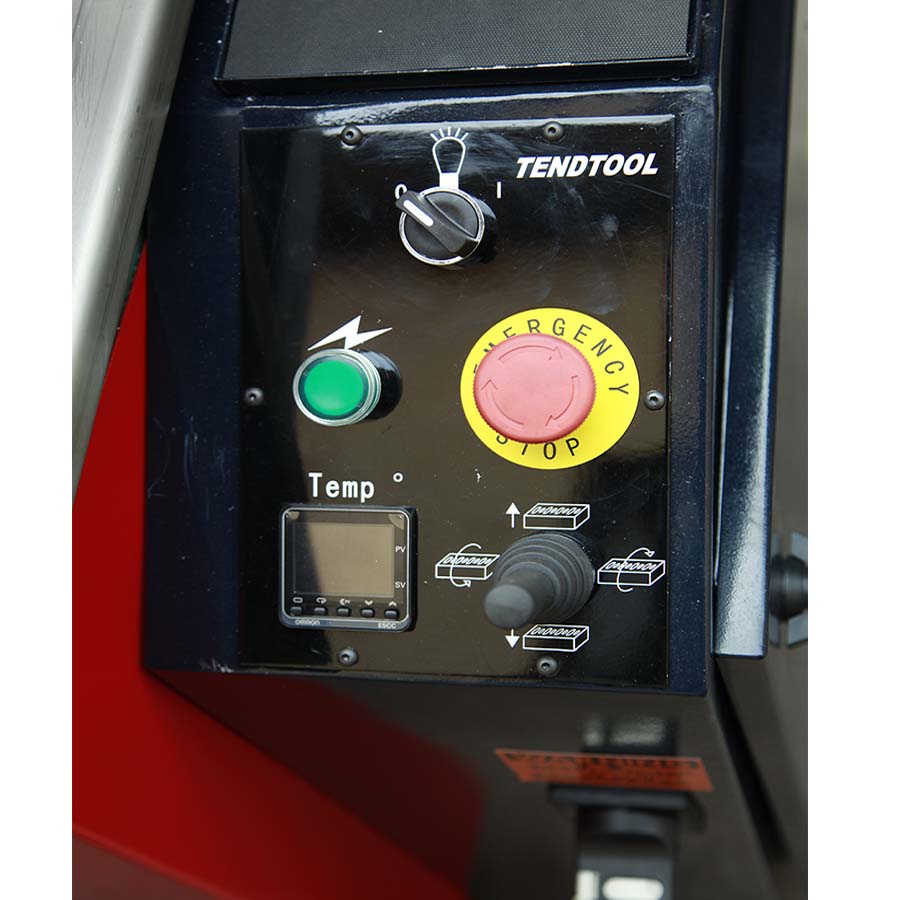

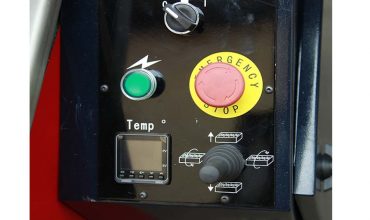

* Low voltage: 24V operating control.
* Electronic adjustable thermostat.
* Heating programmer: daily or weekly.
| Model | Unit | TPT1600 | TPT1600L |
|---|---|---|---|
| Length | Mm/inch | 1250/49 | 1350/53.15 |
| Width | Mm/inch | 400/15.74 | 425/16.73 |
| Henghth | Mm/inch | 300/11.8154 | 300/11.81 |
| Capacity of stainless steel tank | 1/us gal | 500/132 | 500/132 |
| Heating elements | kw | 2*45 | 2*45 |
| Hydraulic hoist | kw | 0.75 | 0.75 |
| Gear-motor | kw | 0.25 | 0.25 |
| Rotational speed | Tr/min | 4 | 4 |
| Up and down travel time | Mm/inch in 10 sec | 600mm/23.62 | 600mm/23.62 |
| Thermostat | ℃ | 0-90 | 0-90 |
| Power supply | Kva-V-Ac/Hz | 16kva-3x230v-ac-50/60hz | 16kva-3x230v-ac-50/60hz |
| Net weight approx | Kg/1bs | 600/1324 | 600/1324 |
| Overalldimension | |||
| Length | Mm/inch | 2000/78.75 | 2100/78.75 |
| Width | Mm/inch | 1050/41.34 | 1050/41.34 |
| Height | Mm/inch | 1700/66.93 | 1700/66.93 |
