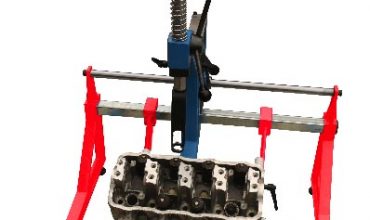

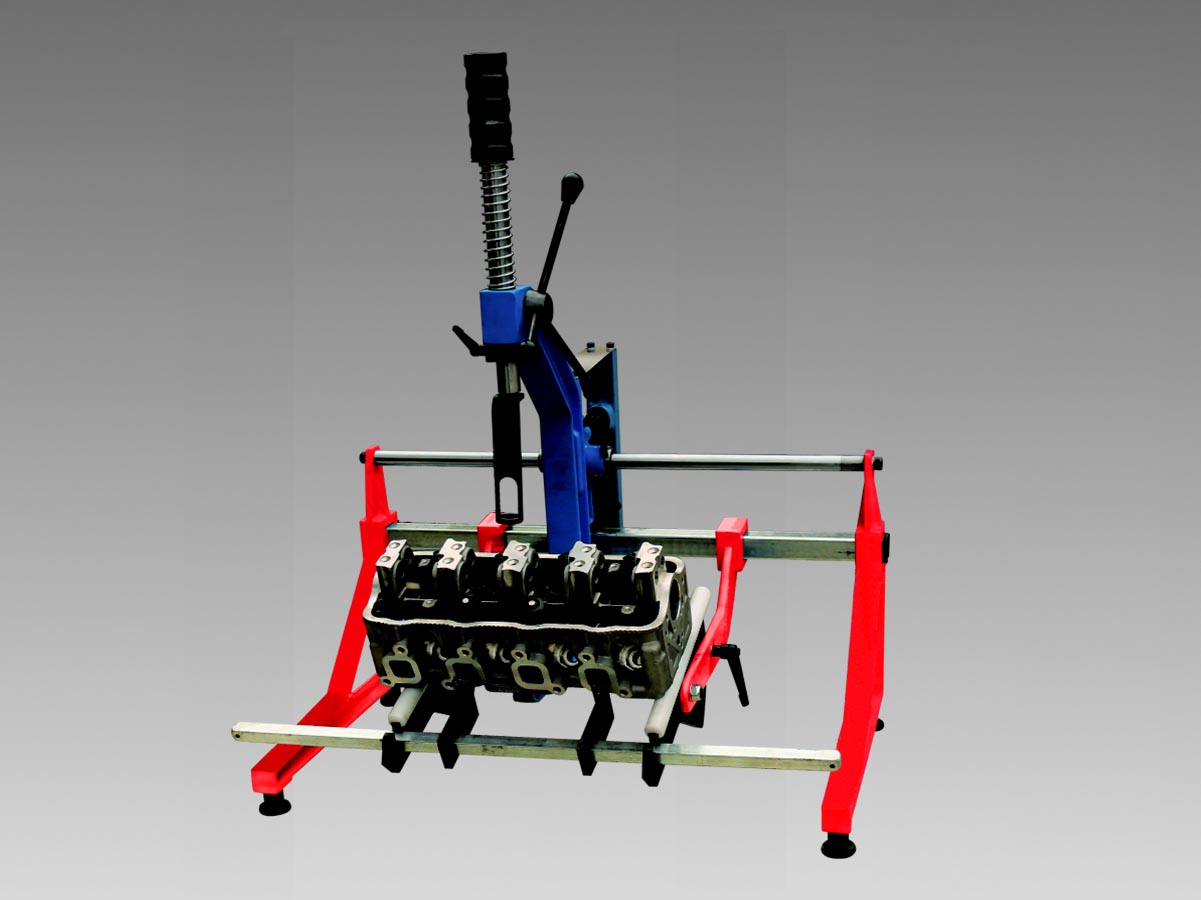

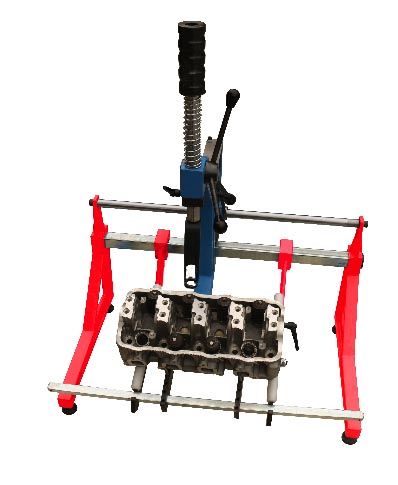

Manuel valve working bench TWB500

Details

Features
Cylinder head on the bench on 3 ways and adjust cylinder head angle easily.The frame is adjustable on 60 cm.

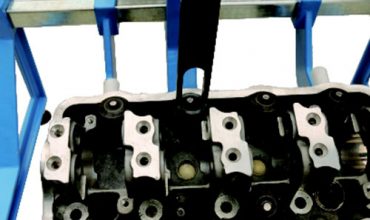

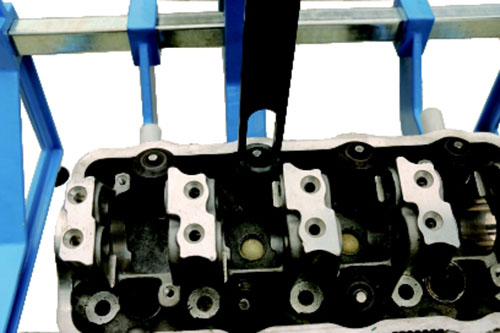

Remove and install valve springs on cylinder heads with recessed springs.
Two different size spring press adaptor is standard accessory.

1.Rapid,adjustable manualclamping system
2.Easily tilts to any valve angle and assembly slidess from valve

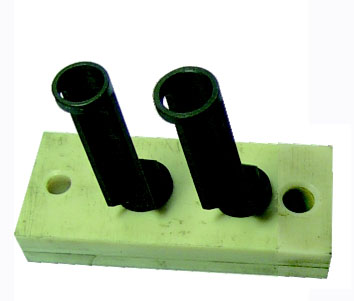

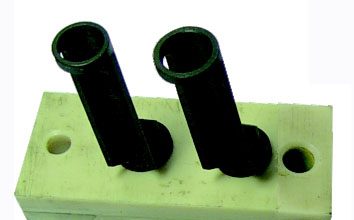

3.2 Sizes press adoptor
4.support hold the valve with polyethylene plates

PDF下载

Photos
Video
Specification
Machine capacities ( max )Space requirements
Length535mmLength500mm
Depth300mmDepth300mm
Heighth822mmHeighth130mm
Net weight approx25 Weight120kg
Accessory
