Featuring

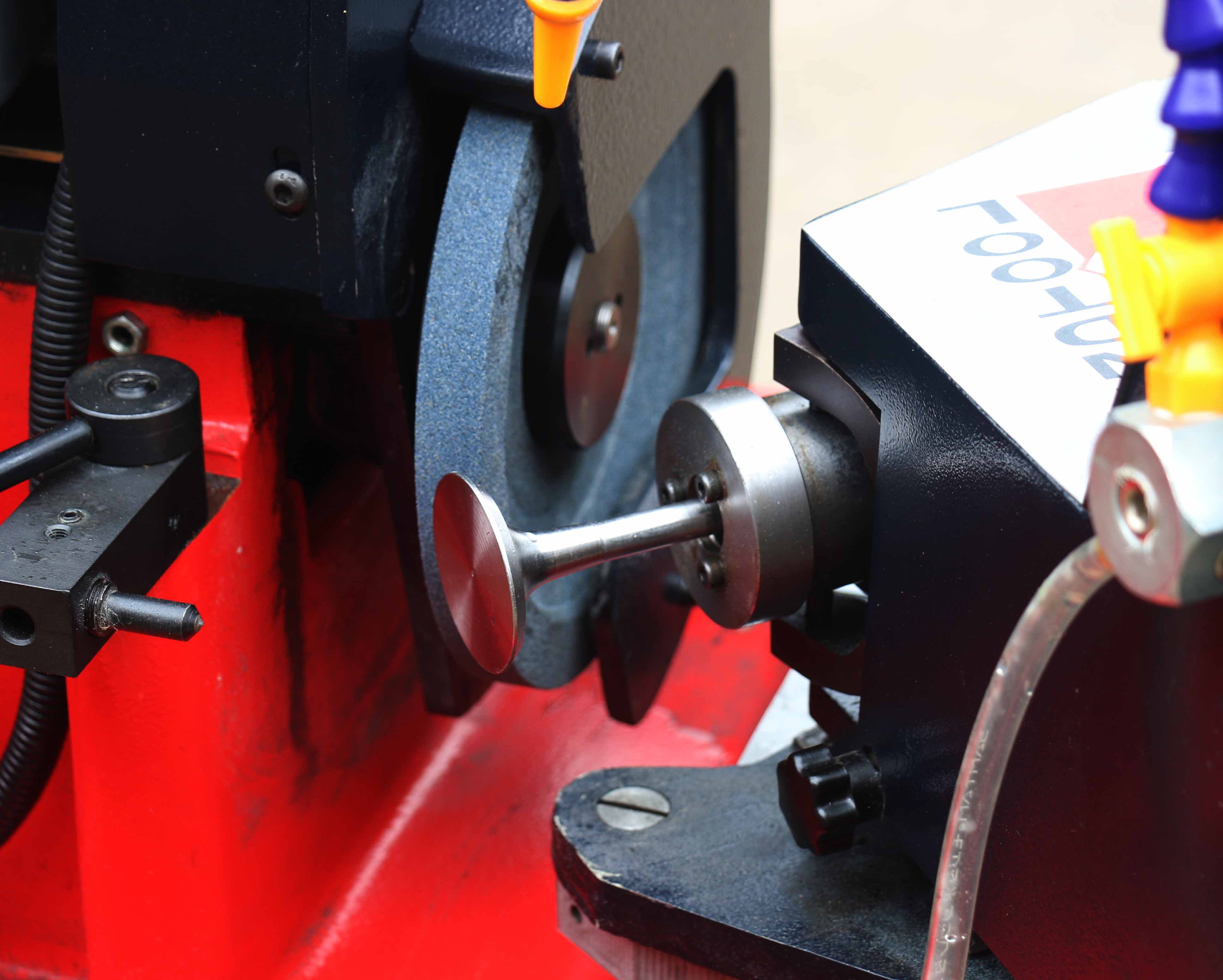

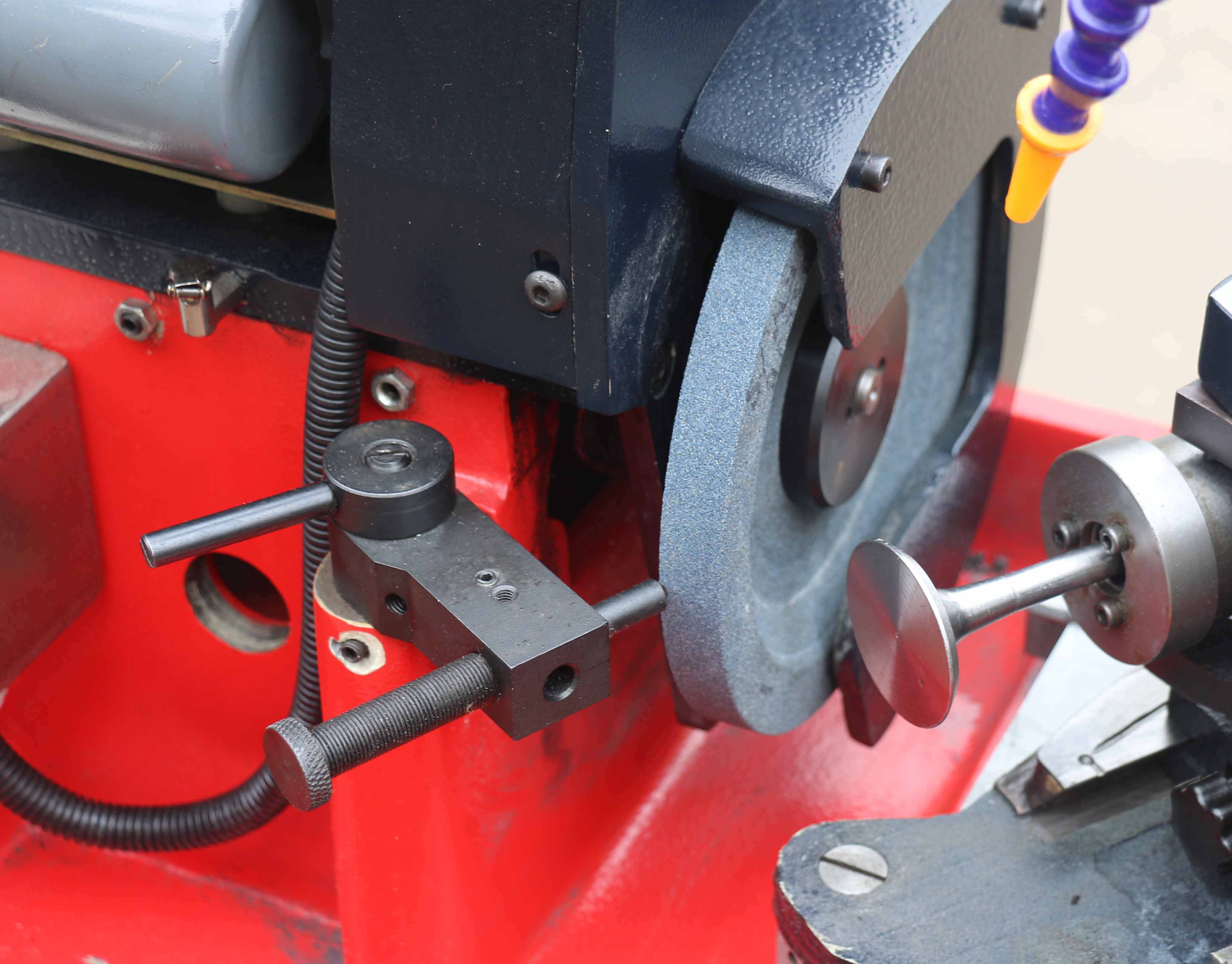

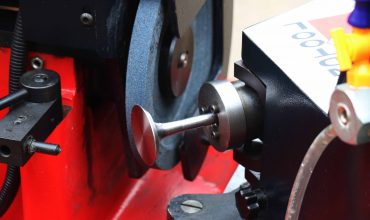

• TENDTOOL’s precision 6-ball chuck for fast, accurate centering of your valves – no collets to change
• Standard 4mm to 14.3mm chuck capacity
• Variable speed chuck to match the proper speed needed to grind today’s variety of valve materials

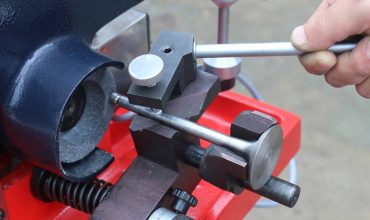

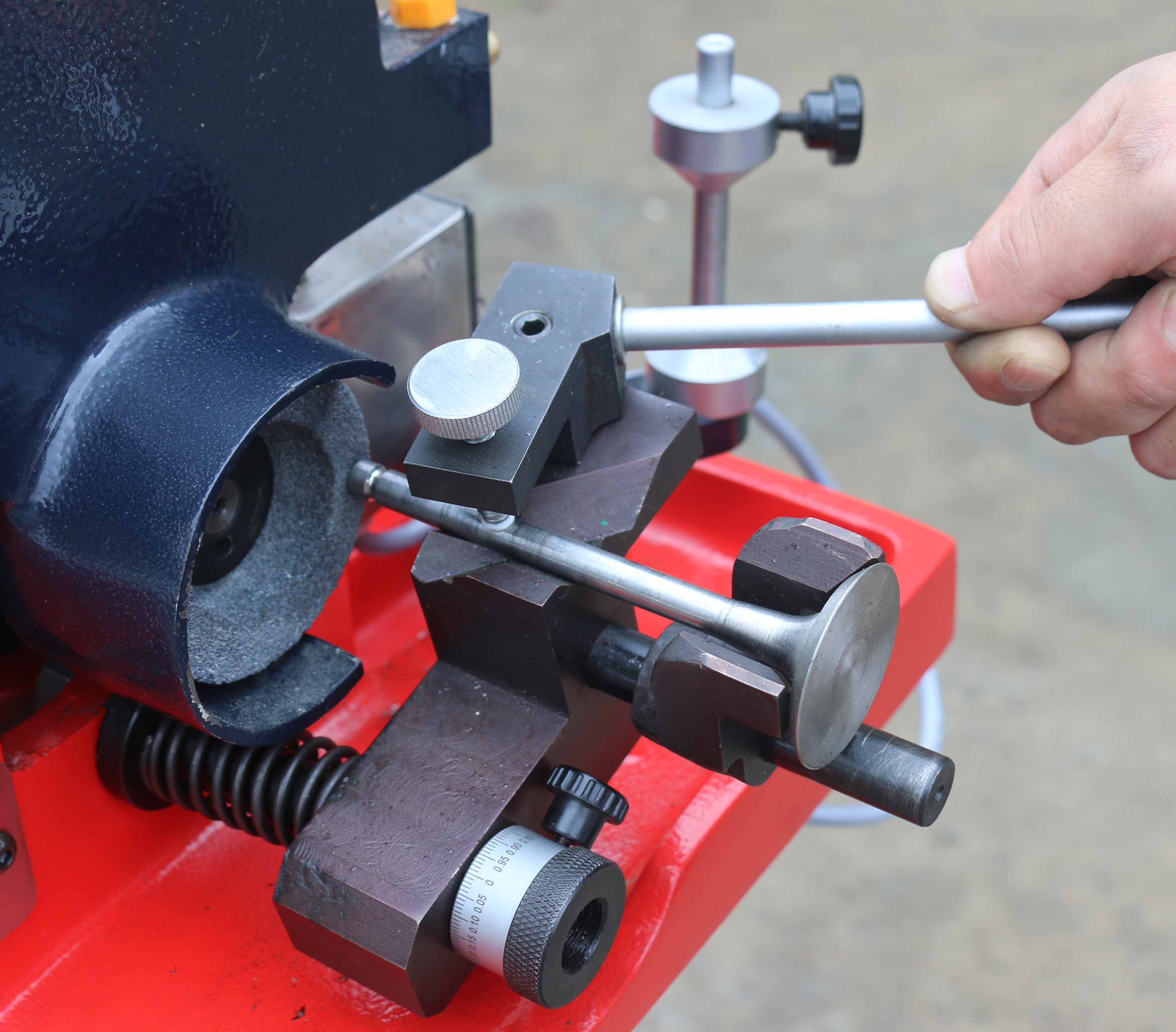

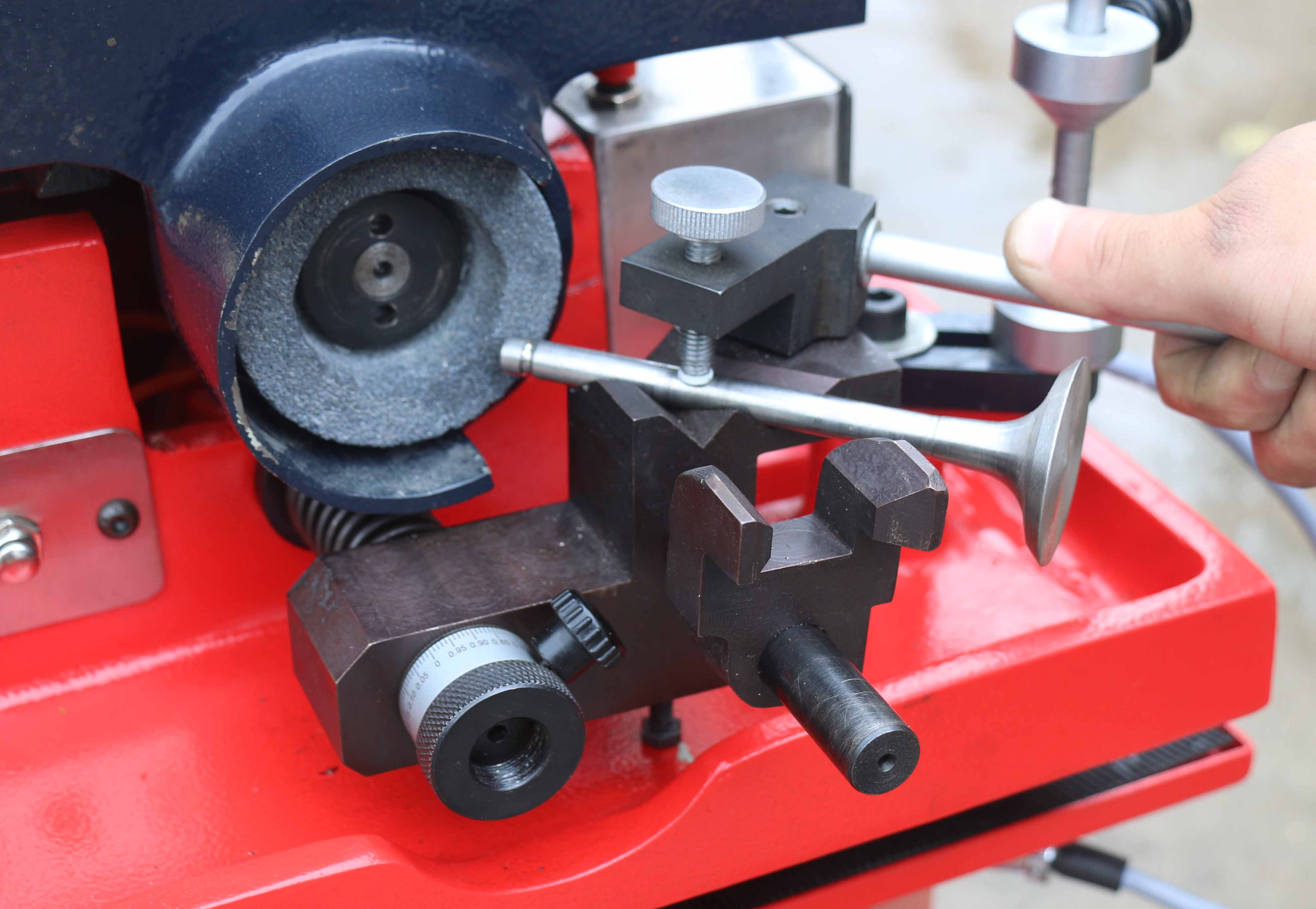

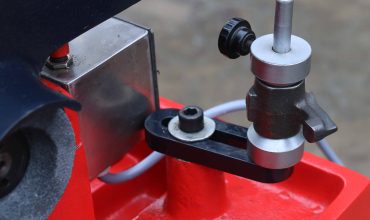

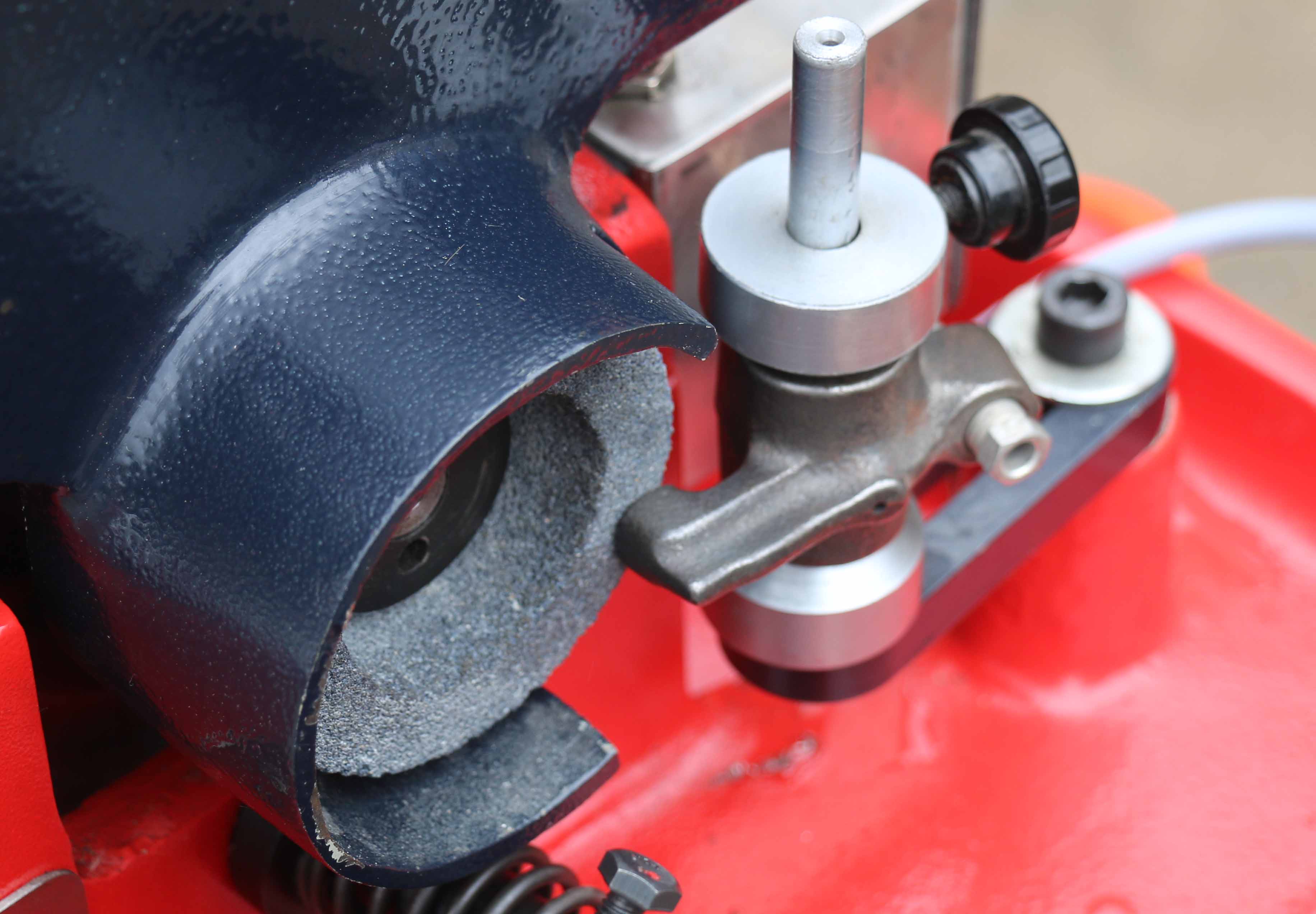

• Rocker arm grinding attachment included
• 0005 accuracy for standard chuck
• 0002 accuracy for high-performance chuck
https://youtu.be/UDqxWmbStWE

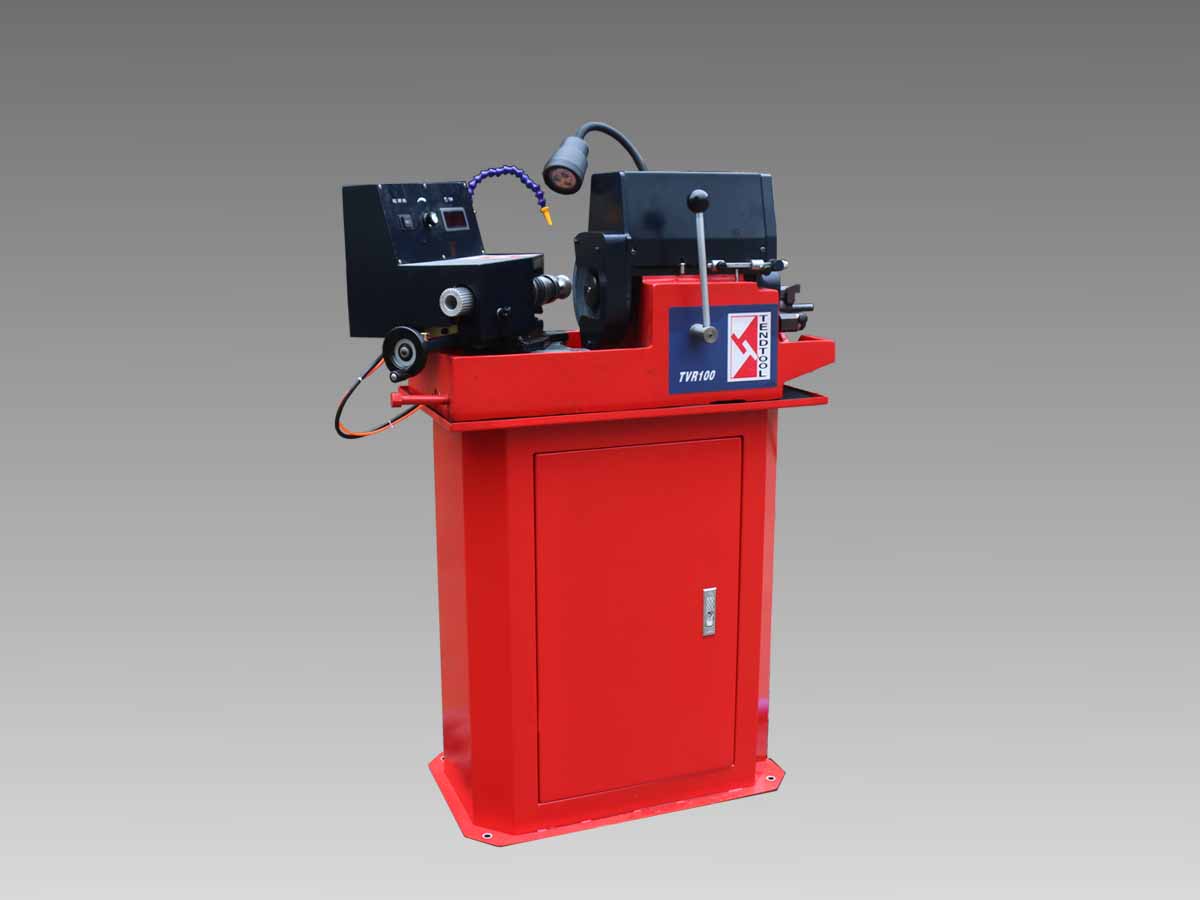

| Model | Unit | TVR100 |
|---|---|---|
| Min chuck capacity | mm | 4 |
| Max chuck capacity | mm | 14.3 |
| Valve head diameter capacity | mm | 19-101.6 |
| Min stem length | mm | 47 |
| Valve wheel diameter | mm | 178 |
| Surface wheel diameter | mm | 76 |
| Spindle drive motor | kw | 0.4 |
| Chuck drive motor | kw | 0.1 |
| Valve wheel RPM | rpm | 3450 |
| Stem wheel rpm | rpm | 3450 |
| Variable chuck speed | rpm | 100-300 |
| Min air requirement | Psi | 65 |
