Features :

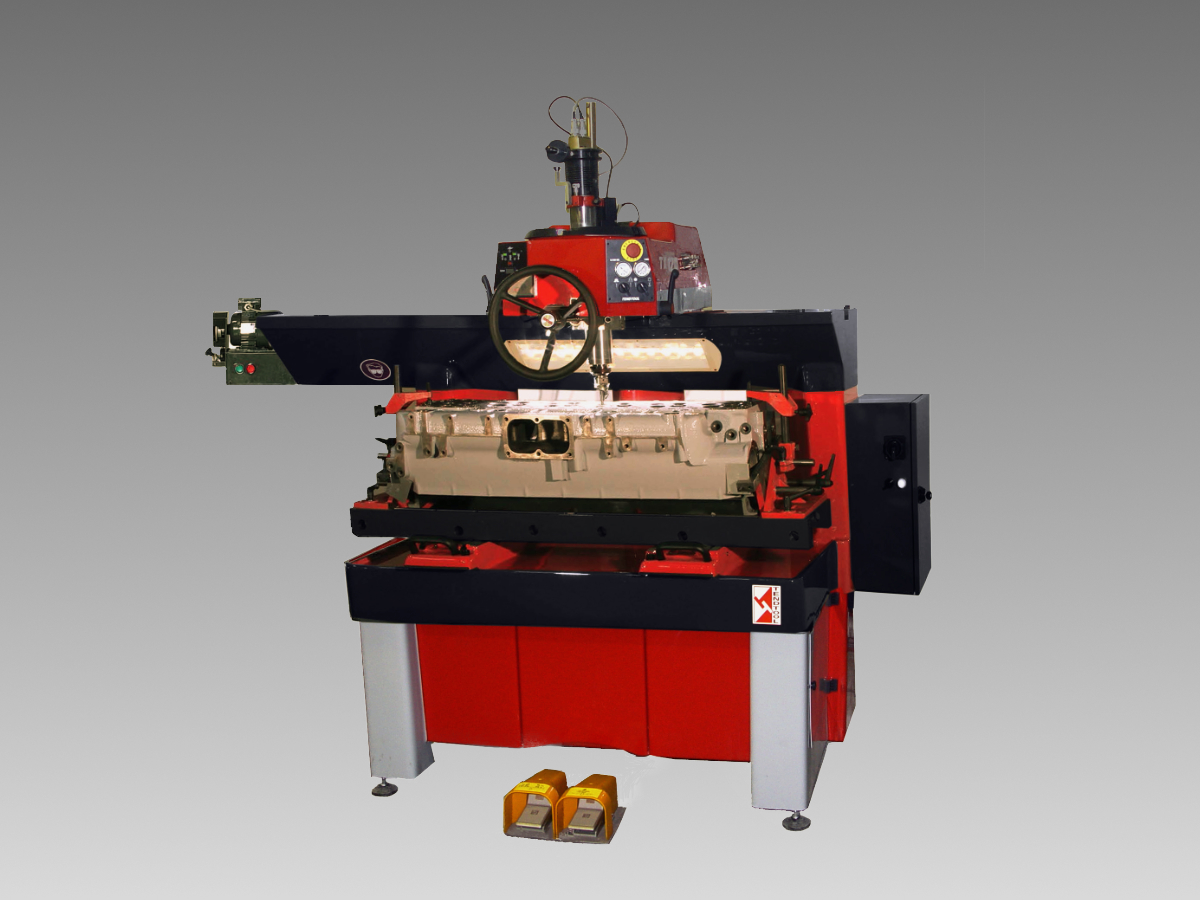

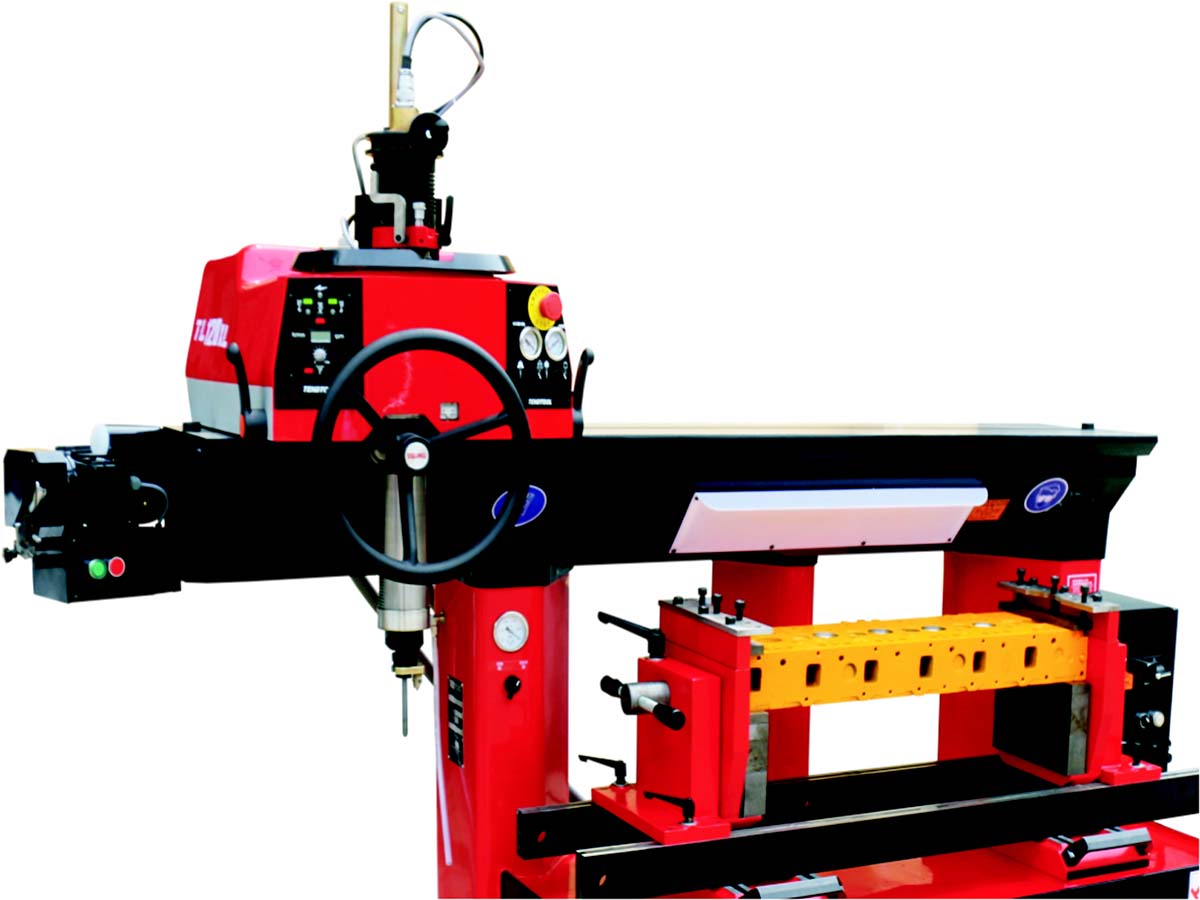

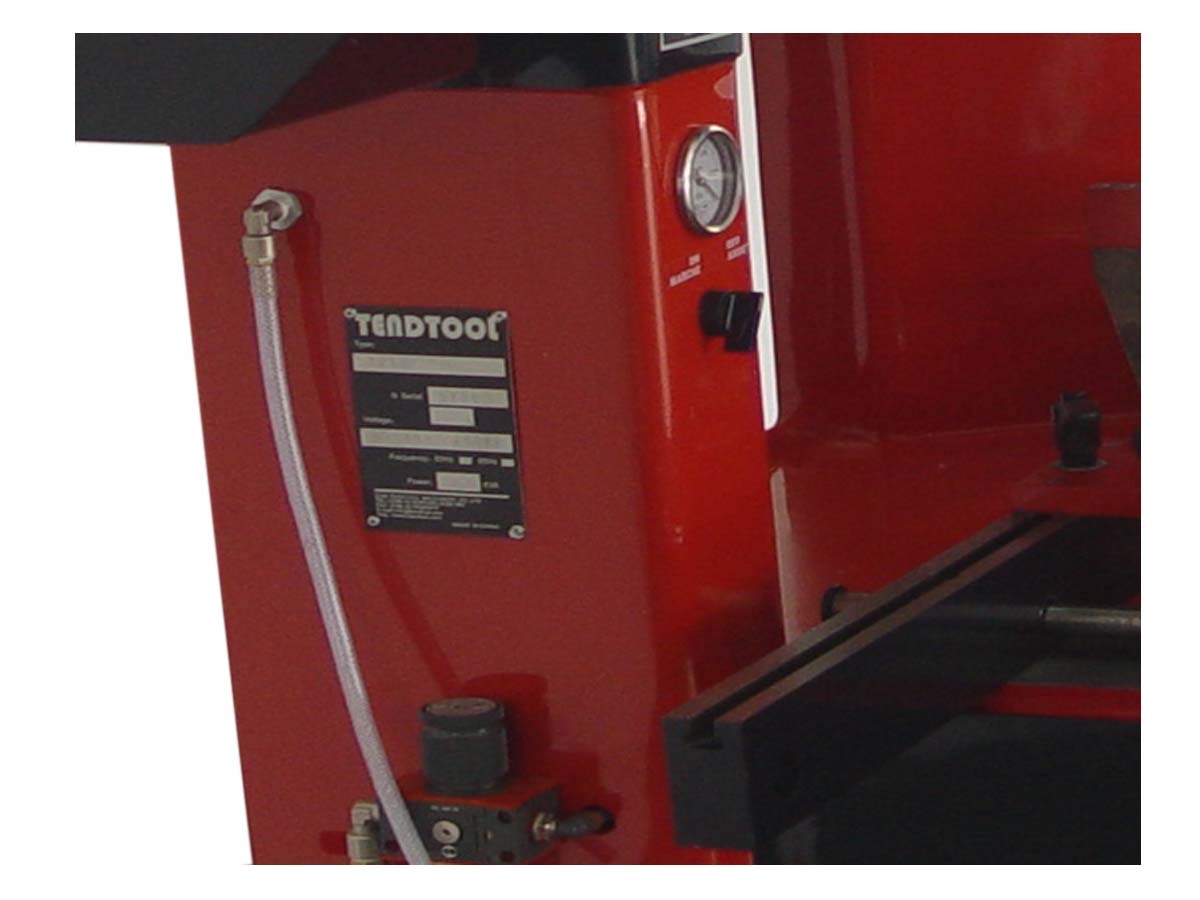

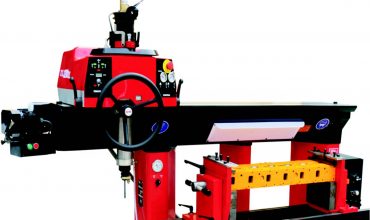

High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads. Patented workhead with triple air-float patented centering system and built-in spindle motor. TENDTOOL TS60 is high precision machine featuring the latest technology incorporating air -float automatic centering and motorspindle. Air-floated table fixture can make the movement of workpiece more flexible. Especially developed for the repair of small motorcycle and automotive multivalve cylinder heads.
●Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest seats.
●Machine bed structure optimized by static and dynamic calculation, with a functional design.
●Machining capacity from 0.551″ / 14mm to 2.36″ / 60mm.

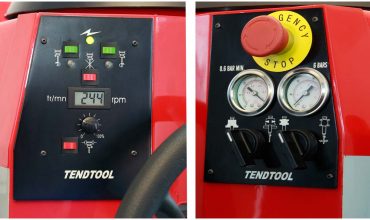

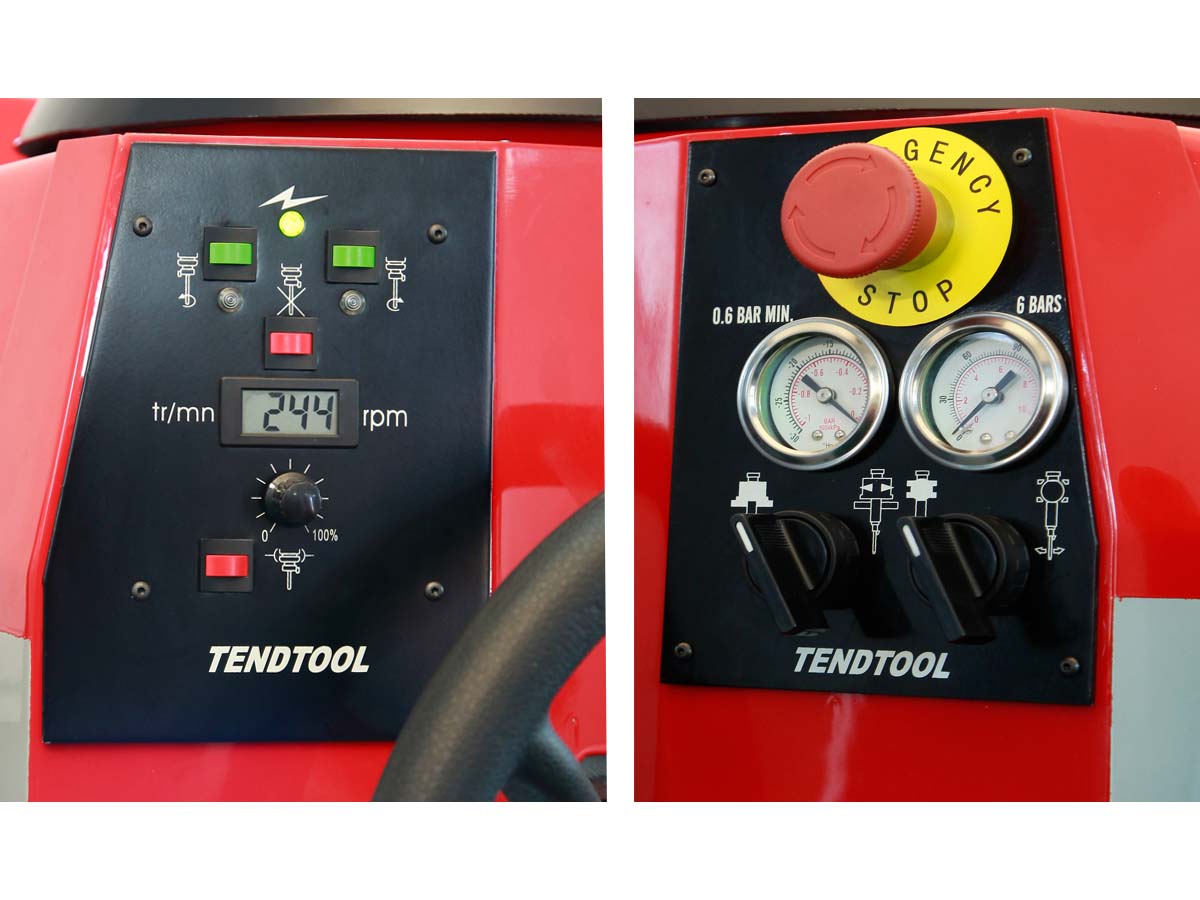

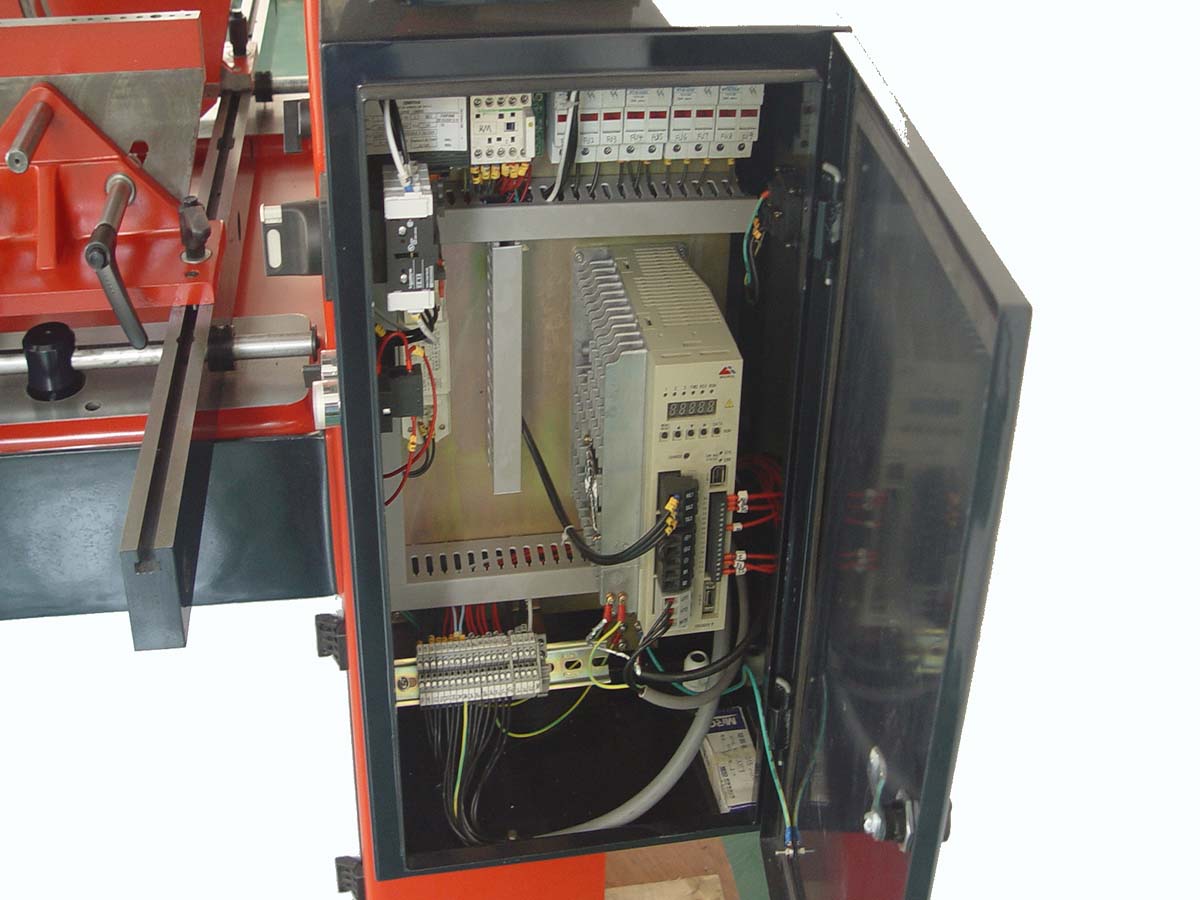

●Fully integrated spindle motor: infinitely variable spindle speed,0 to 1000 r.p.m., with sensorless Vector Flux Control in open loop (Extremely broad torque ratings from lowest r.p.m.).

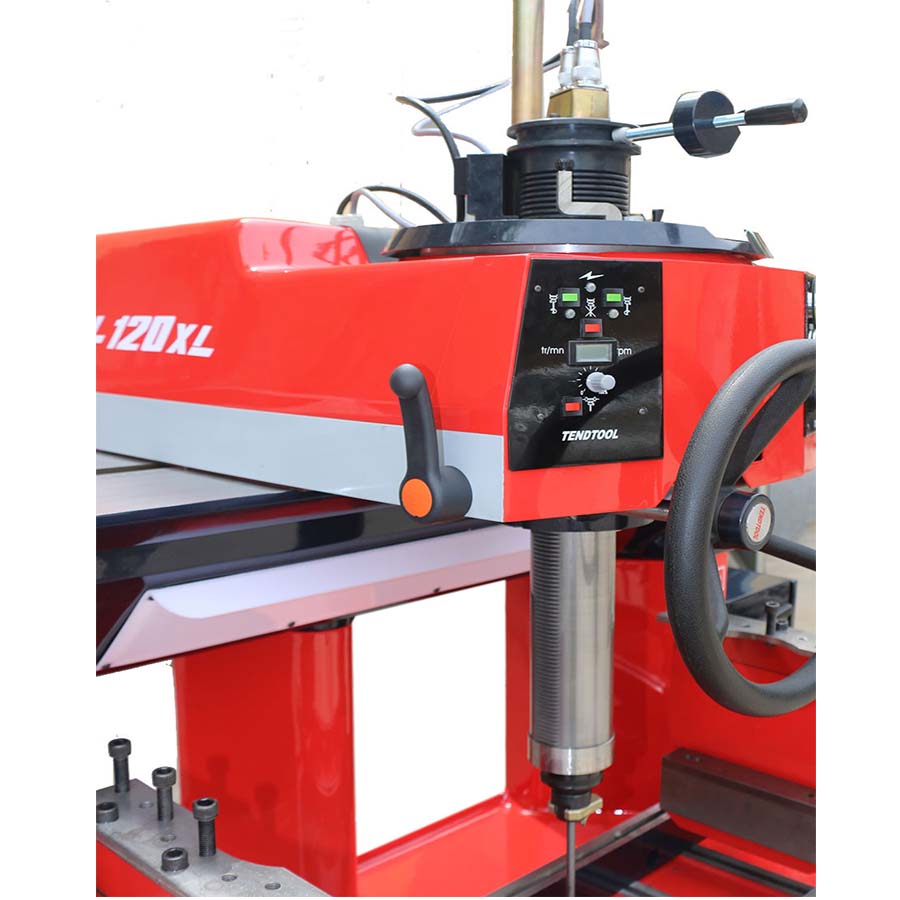

●Rigid, low-inertia workhead. Easy to use due to an automatic reset system.

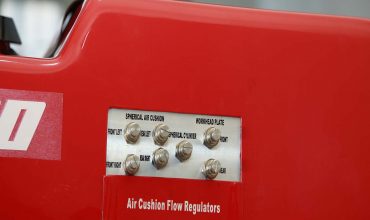

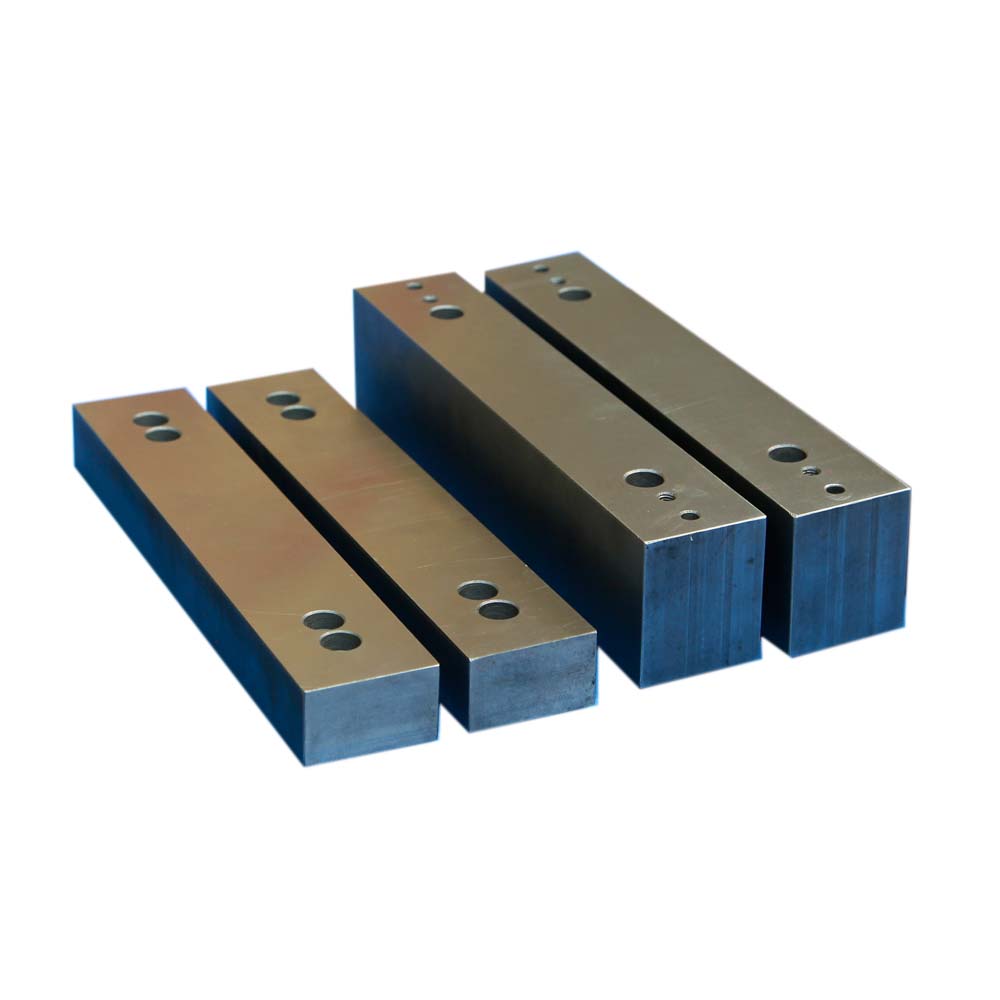

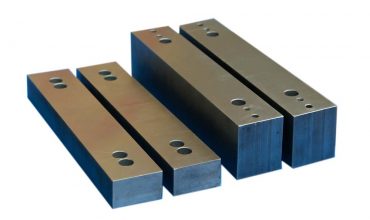

●Air-floated table fixture with 400mm lengthwise and 40mm crosswise travel.

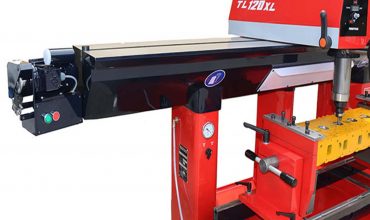

Machine Space requirements | Model | TL120XL |
---|---|---|
Length | mm/inch | 2000/58 |
-(optional) long with a beam | mm/inch | 2400/78 |
Width | mm/inch | 500 |
Height | mm/inch | 450/17.7 |
Crosswise work piece tilting | Degrees | +45°~-15° |
Cross travel of worktable | mm | 160 |
Machining capacity (min-max) | ∮mm/inch | 16-120/0.63-4.72 |
Work head displacement Lengthwise (standard) | mm/inch | mm/inch |
- option long beam charge | mm/inch | 1440/94 |
Crosswise | mm/inch | 40/1.6 |
Sphere cylinder travel mm/inch | mm/inch | 9/0.4 |
Spindle Max. spindle inclination 5 | Degrees | 5° |

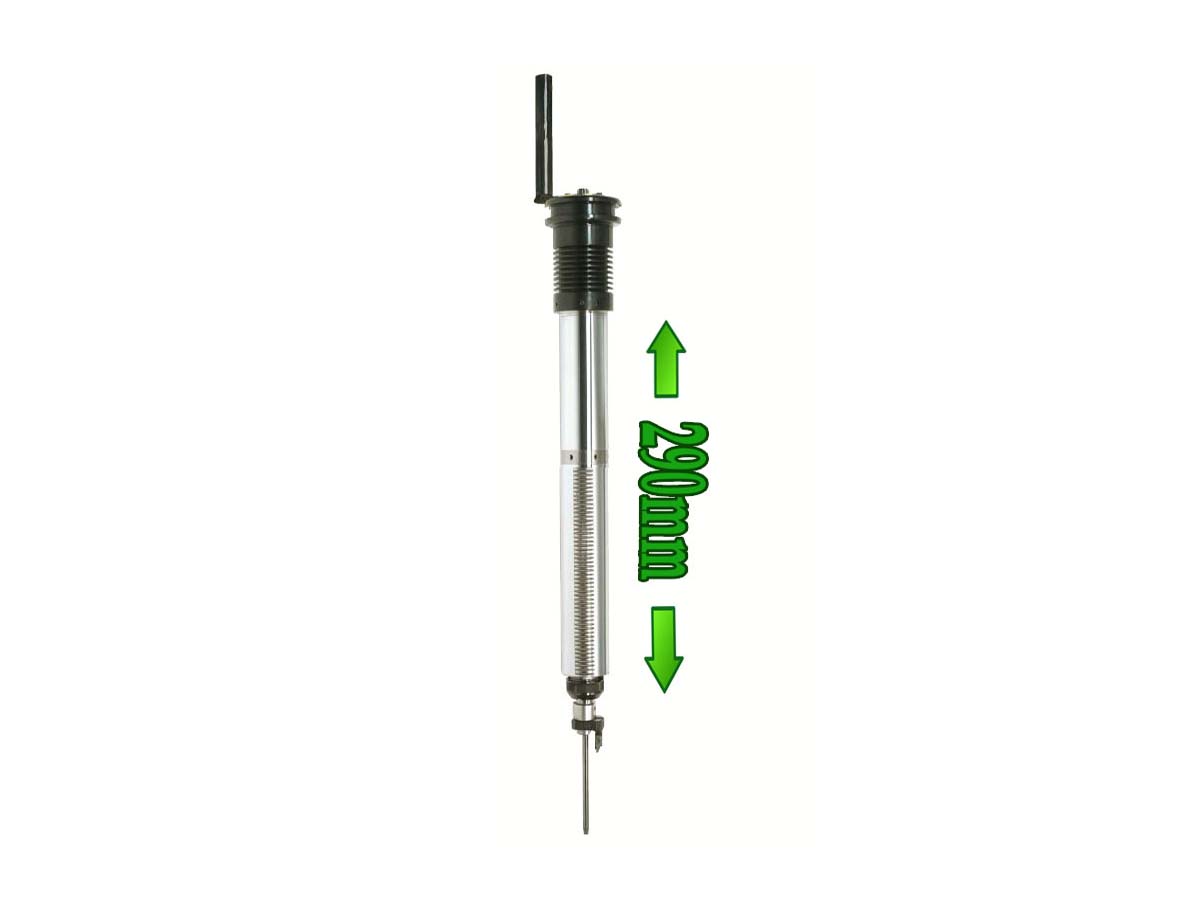

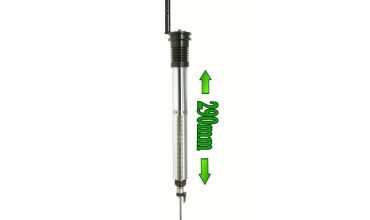

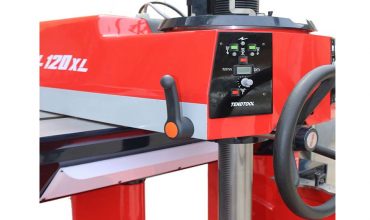

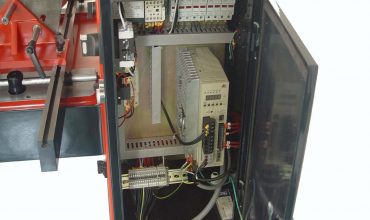

Spindle travel (standard) | mm/inch | 240/9.4 |
- option long | mm/inch | 290/11.5 |
Spindle motor power | kw | 2.2 |
Spindle rotation | rpm | 0-1000 |
Power supply | 380V/50Hz 3Ph /220V/60Hz 3Ph | |
Air flow | Bar/psi | 6/87 |
Max. air | 1/min/cfm | 300/11 |
Level of noise at 400rpm | dba | 72 |
At 1200rpm | dba | 82 |
N W/G W | Kg/1bs | 1550/3417 / 1450/3197 |
Machine Space requirements(L*W*H) | mm/inch | 2250*1150*2280/89*45*86.6 |
