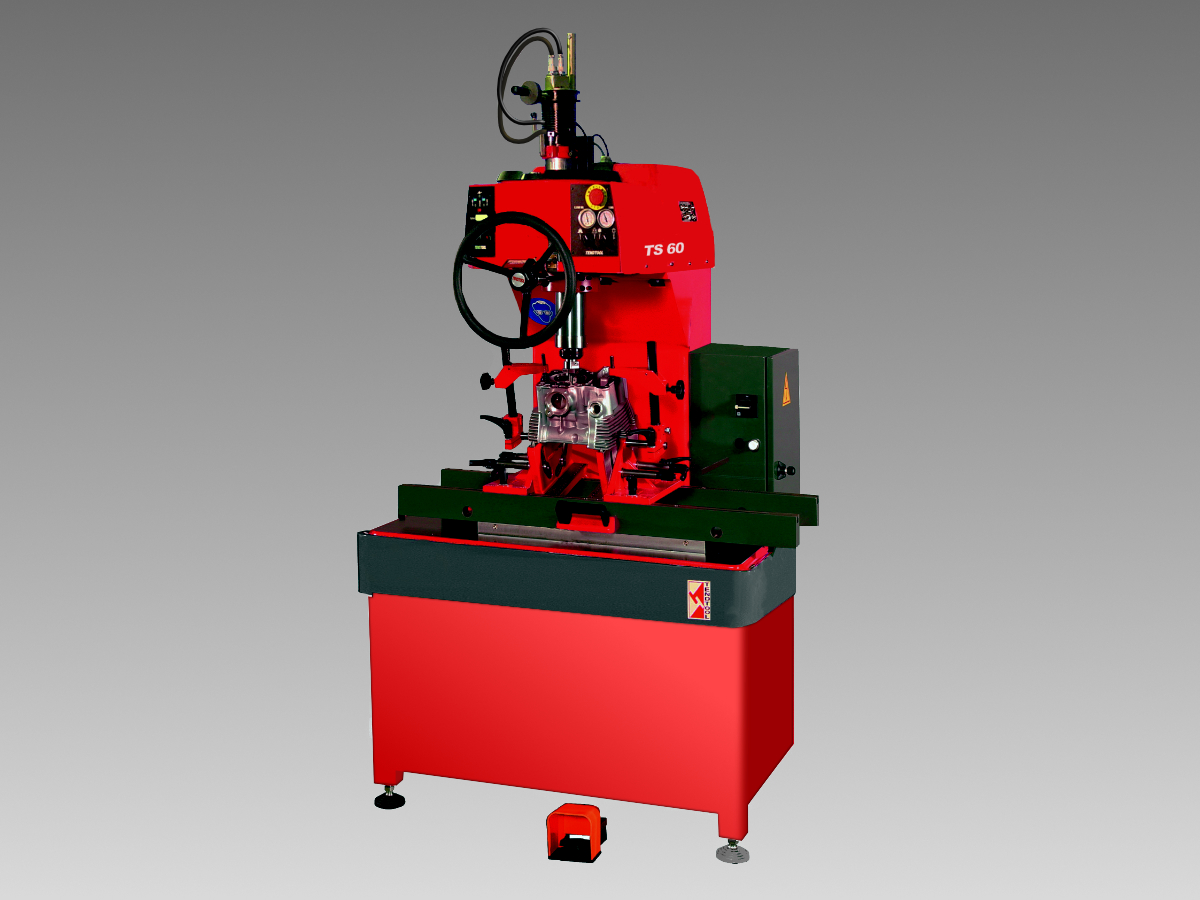

Valve seat boring machine TS60

Details

Features :

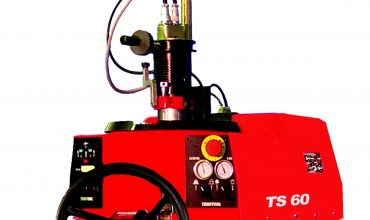

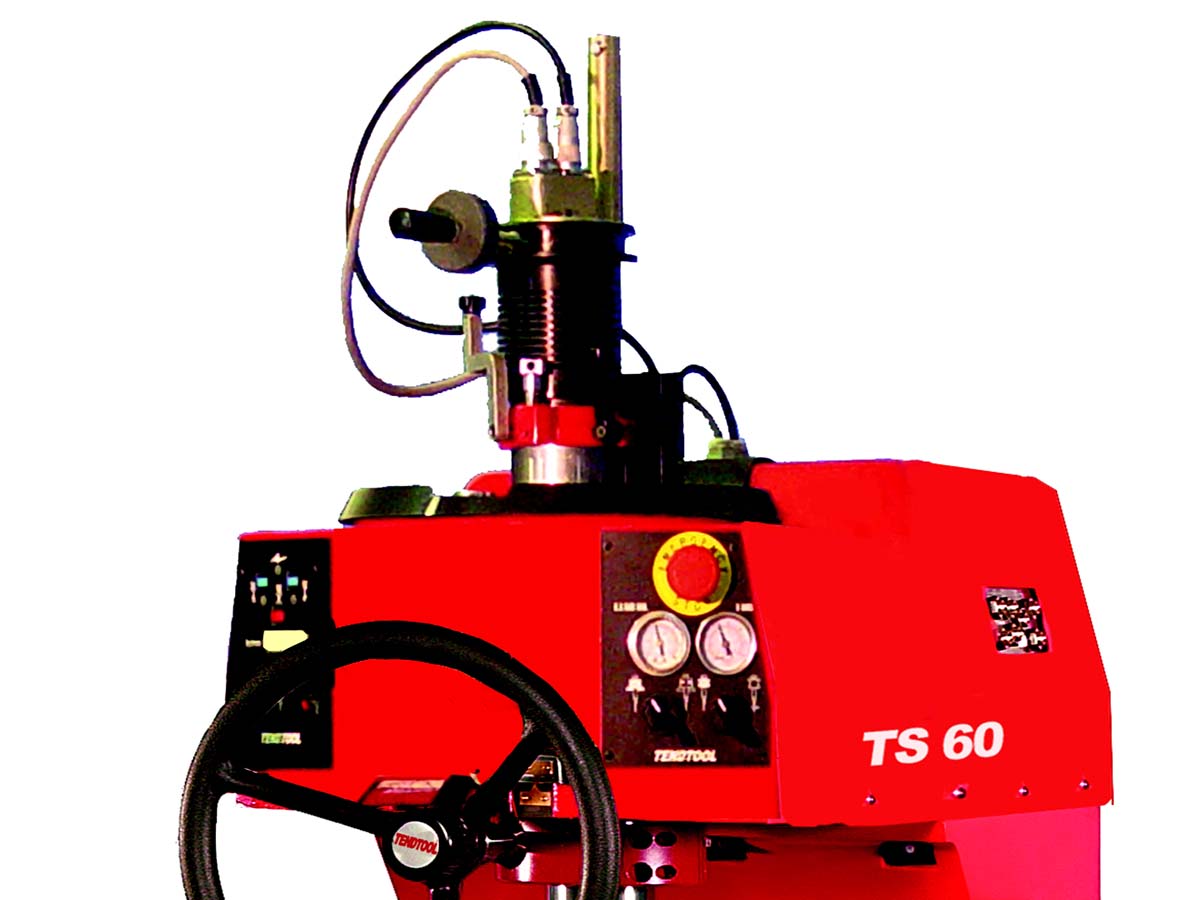

High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads. Patented workhead with triple air-float patented centering system and built-in spindle motor. TENDTOOL TS60 is high precision machine featuring the latest technology incorporating air -float automatic centering and motorspindle. Air-floated table fixture can make the movement of workpiece more flexible. Especially developed for the repair of small motorcycle and automotive multivalve cylinder heads.
●Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest seats.
●Machine bed structure optimized by static and dynamic calculation, with a functional design.
●Machining capacity from 0.551″ / 14mm to 2.36″ / 60mm.

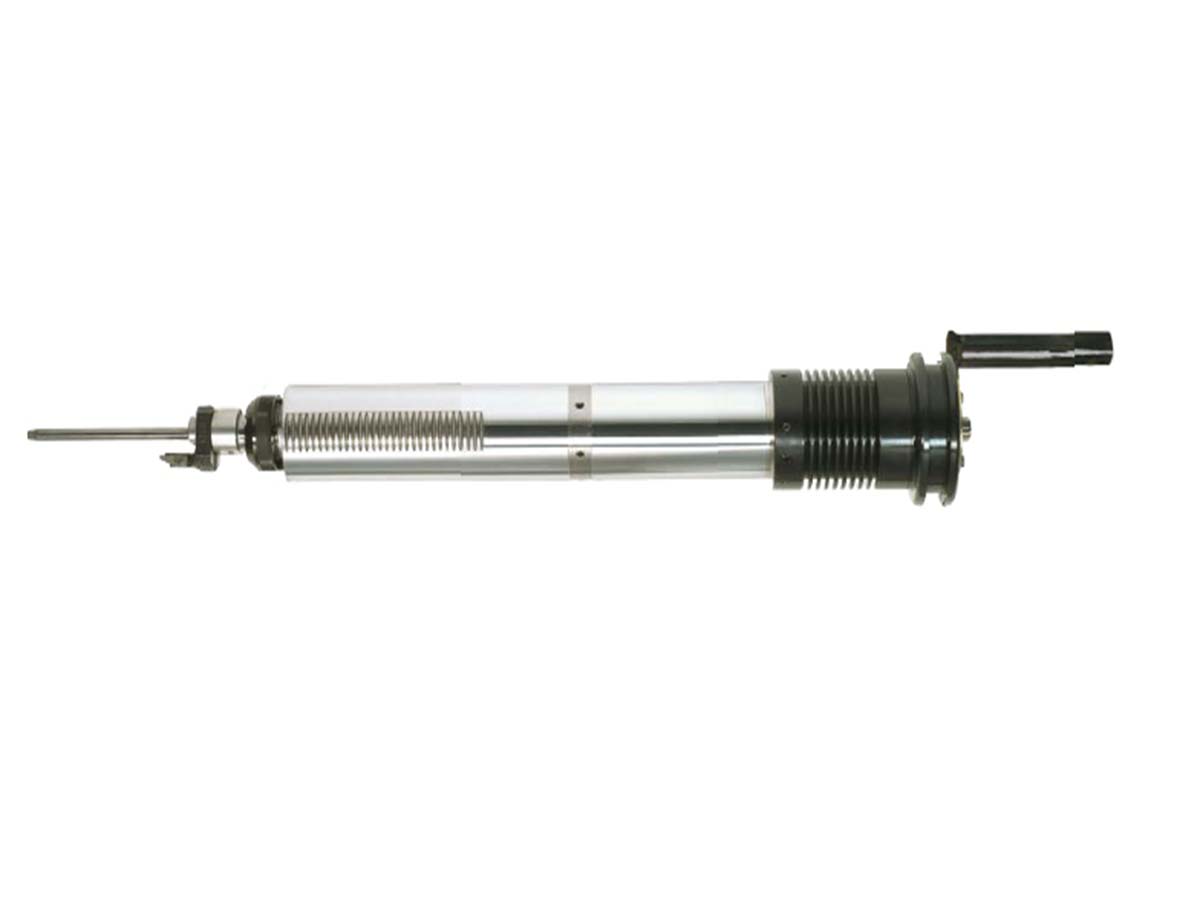

●Fully integrated spindle motor: infinitely variable spindle speed,0 to 1000 r.p.m., with sensorless Vector Flux Control in open loop (Extremely broad torque ratings from lowest r.p.m.).
●Rigid, low-inertia workhead. Easy to use due to an automatic reset system.

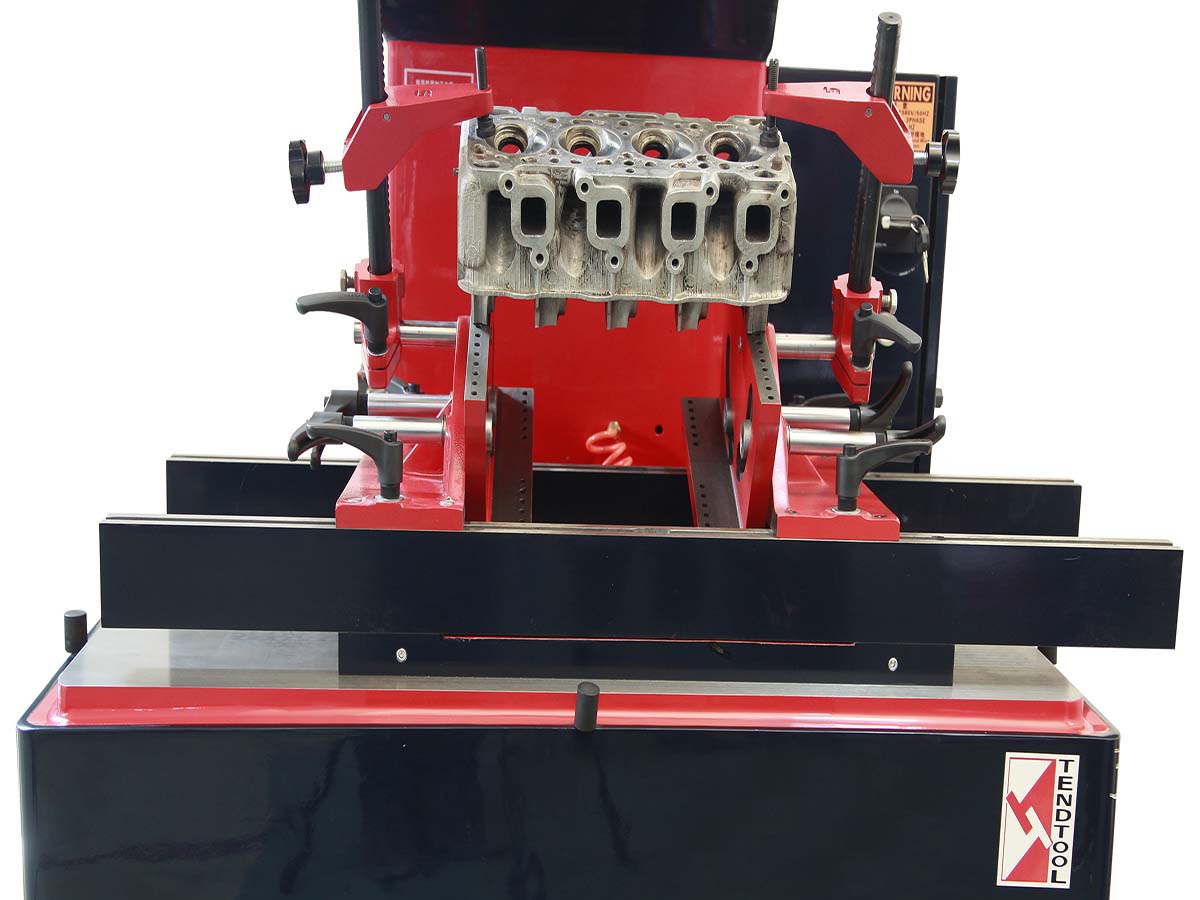

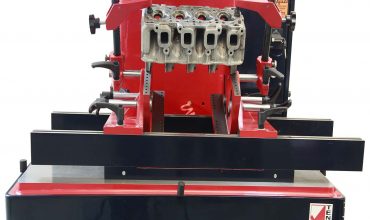

●Air-floated table fixture with 400mm lengthwise and 40mm crosswise travel.

PDF下载

Photos
Video
Specification
Machine capabilitiesUnitTS60
Max. length of the cylinder head mm/inch600/23.62
Max. width of the cylinder headmm/inch 400/15.75
Max. height of the cylinder headmm/inch 450/15.72
Crosswise work piece tiltingdegrees +42°--- -15°
Machining capacity dia.(min-max) Lengthwise Crosswise Φ mm/inch16-60/ 0.63-2.36
Work head displacement mm/inch8/0.32
Travel of working table length wisemm/inch400/15.75
Travel of working table Crosswisemm/inch8/3.15
Max. spindle inclination Degree
Spindle travel mm/inch 200/8
Power of the spindle kw1.8
Spindle rotation speedrpm 0--1000
Alimentations power supply380V-AC-3Ph-50Hz 220V-AC-3ph-60Hz
Air supply maxBar/psi6/87
Max. air flow1/min/CFM300/11
Level of noise at 400RPMdba72
Level of noise at 1200RPMdba82
Net weight approx.kg/lbs600/1320
Machine space requirements
Lengthmm/inch1400/55.12
Widthmm/inch900/35.43
Heightmm/inch2000/78.74

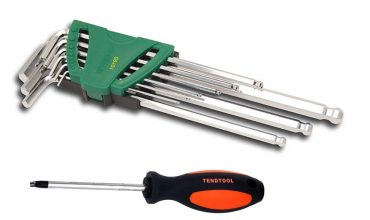

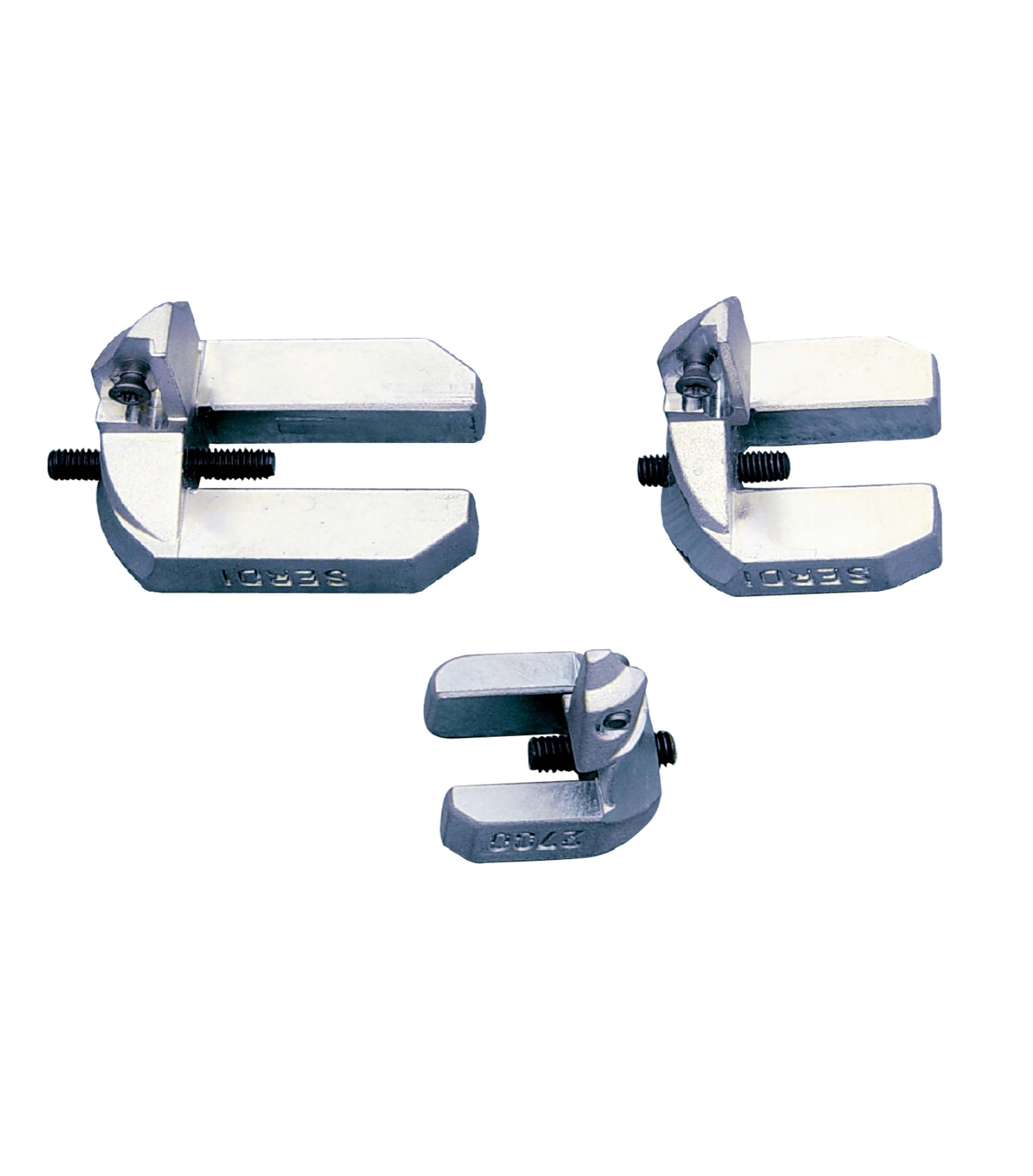

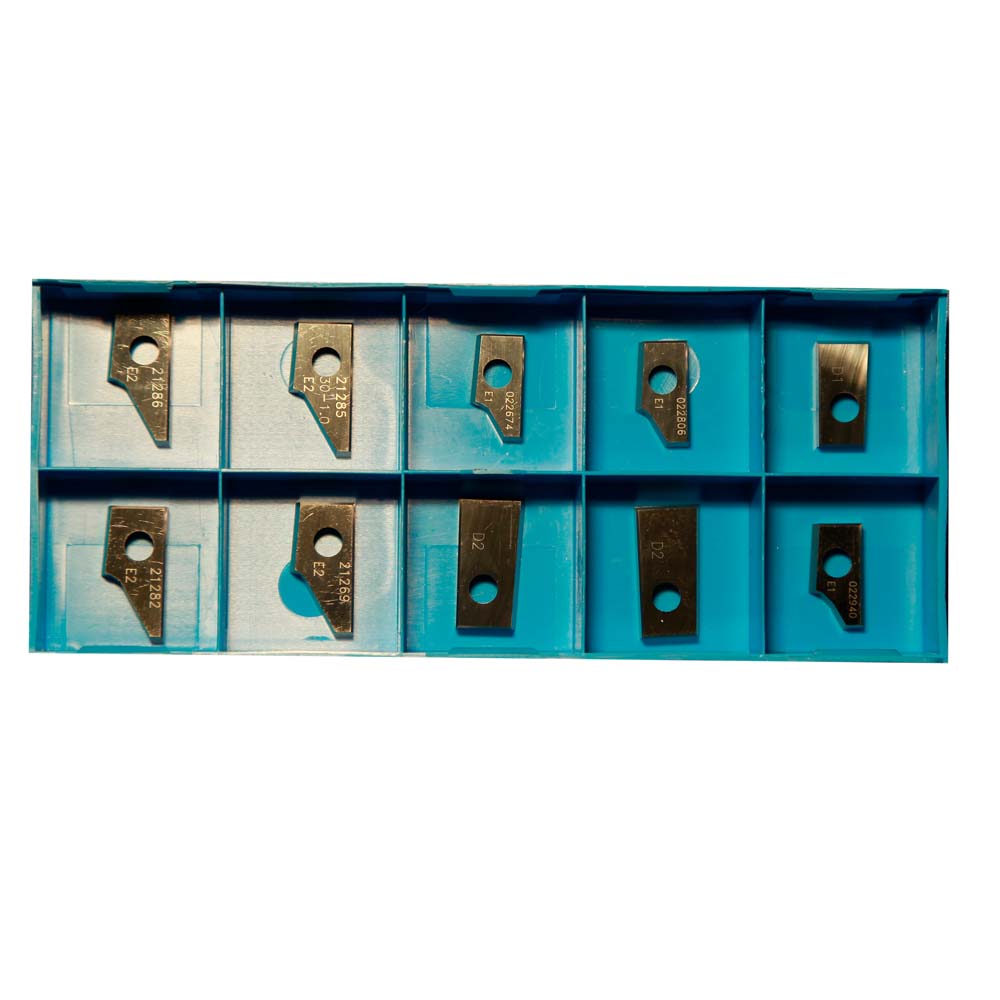

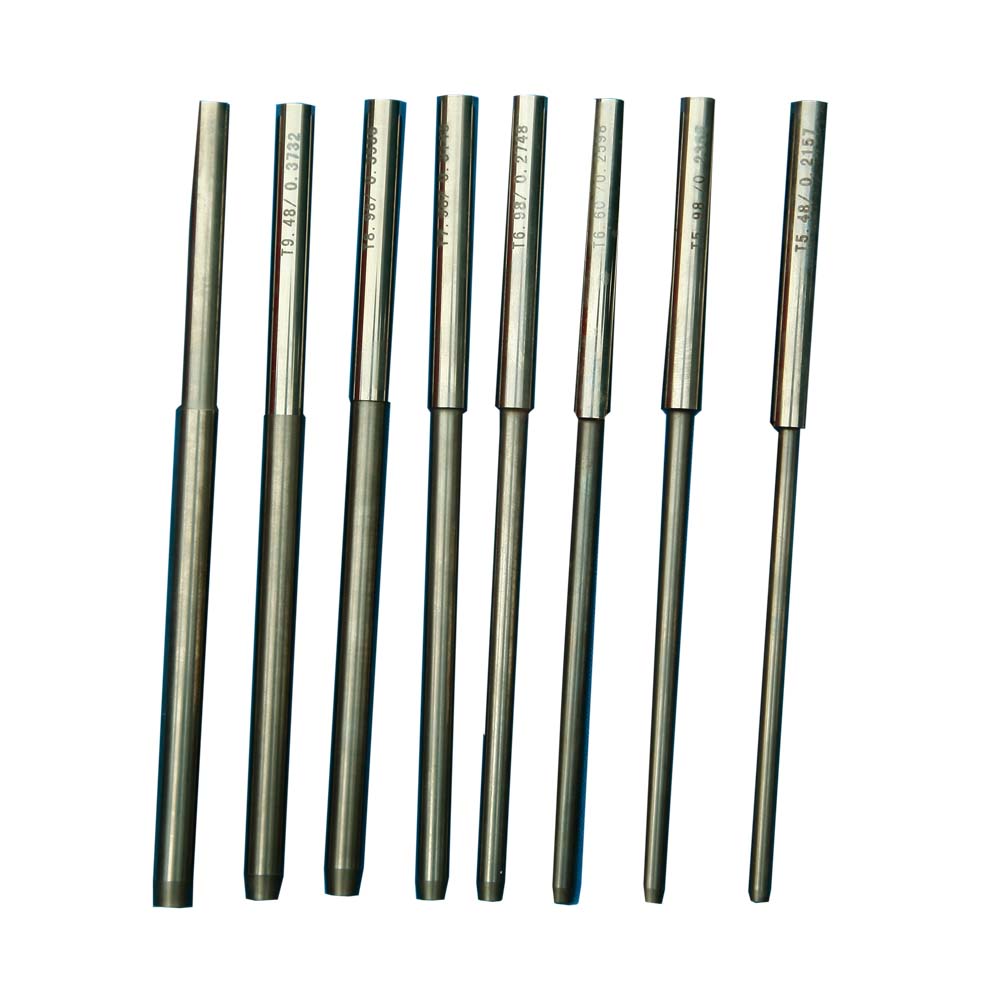

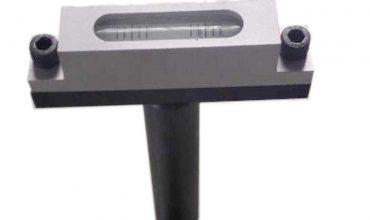

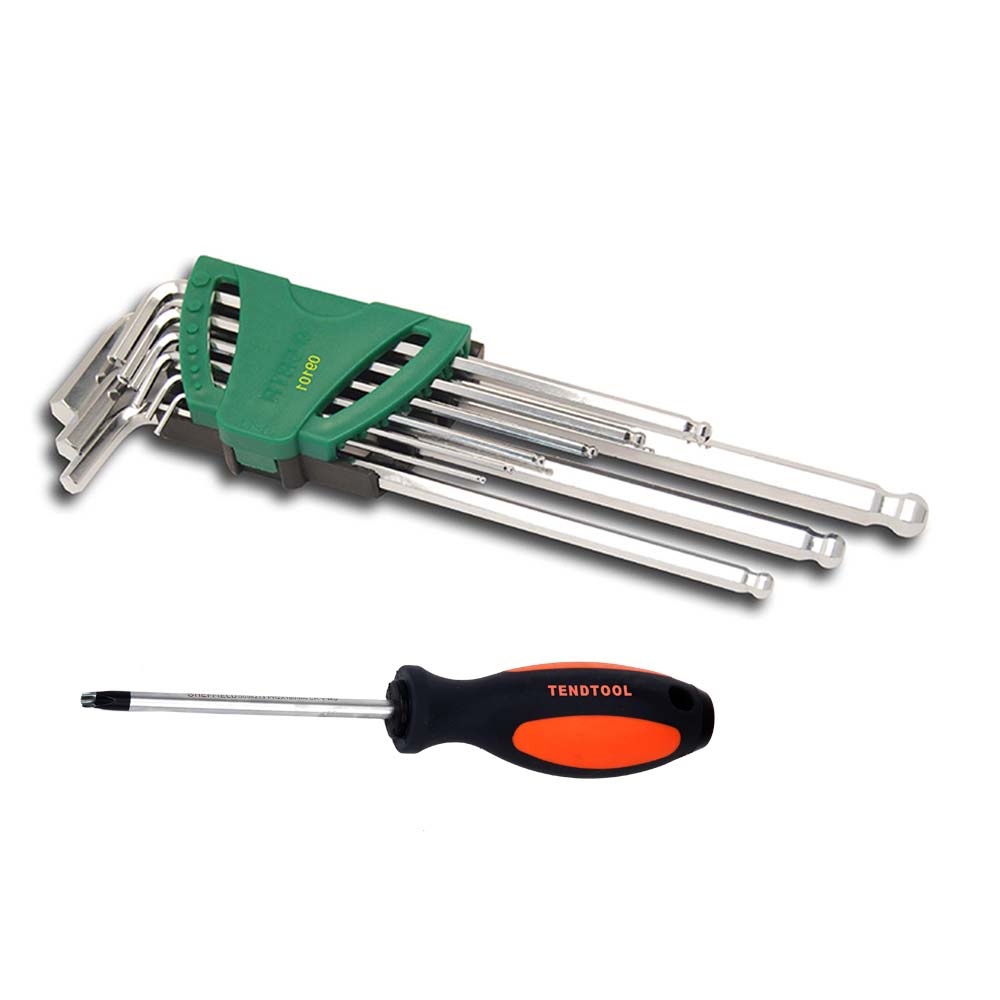

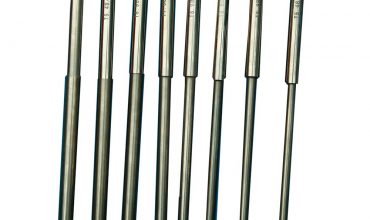

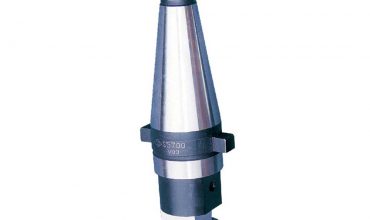

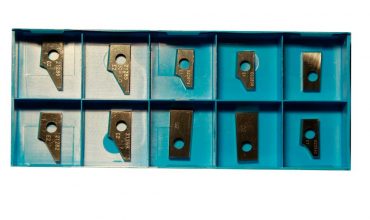

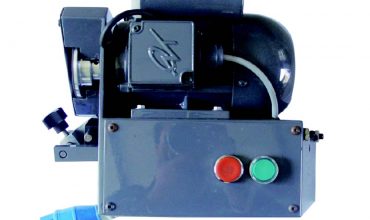

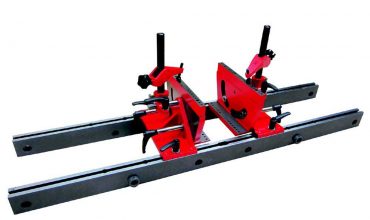

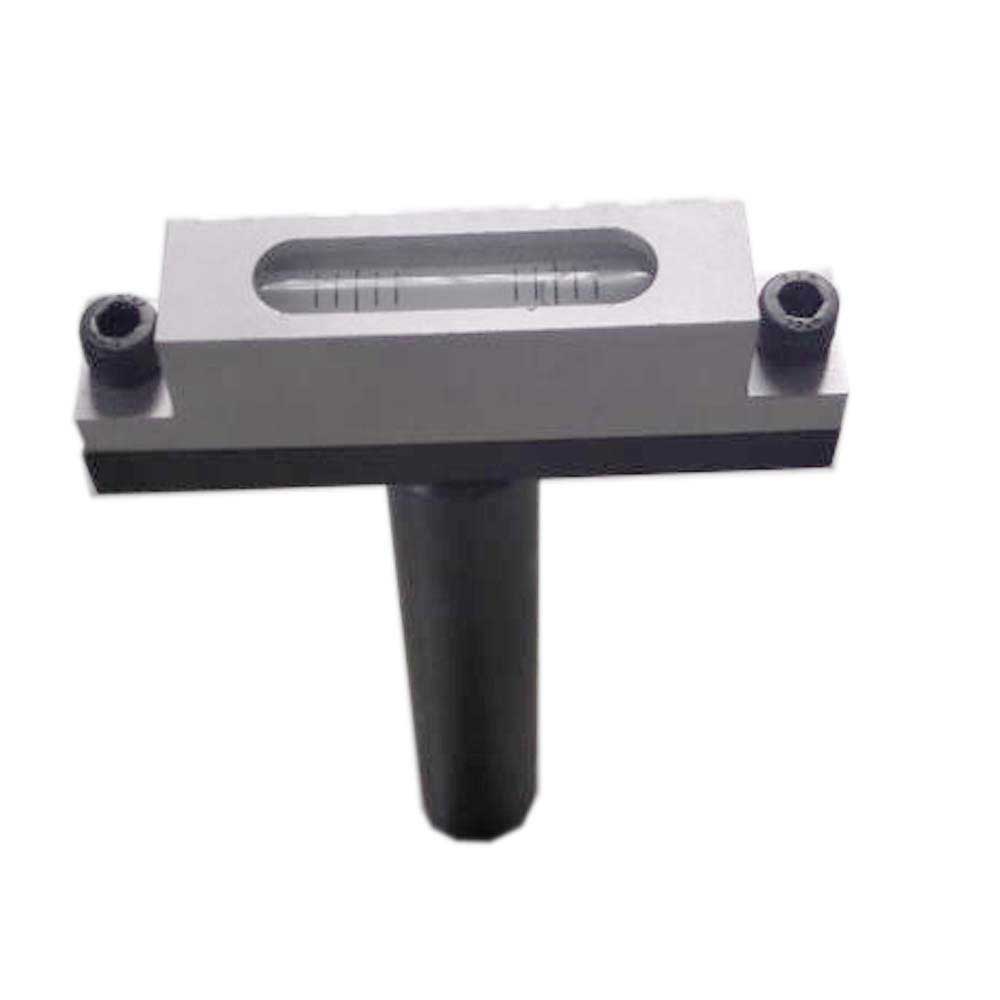

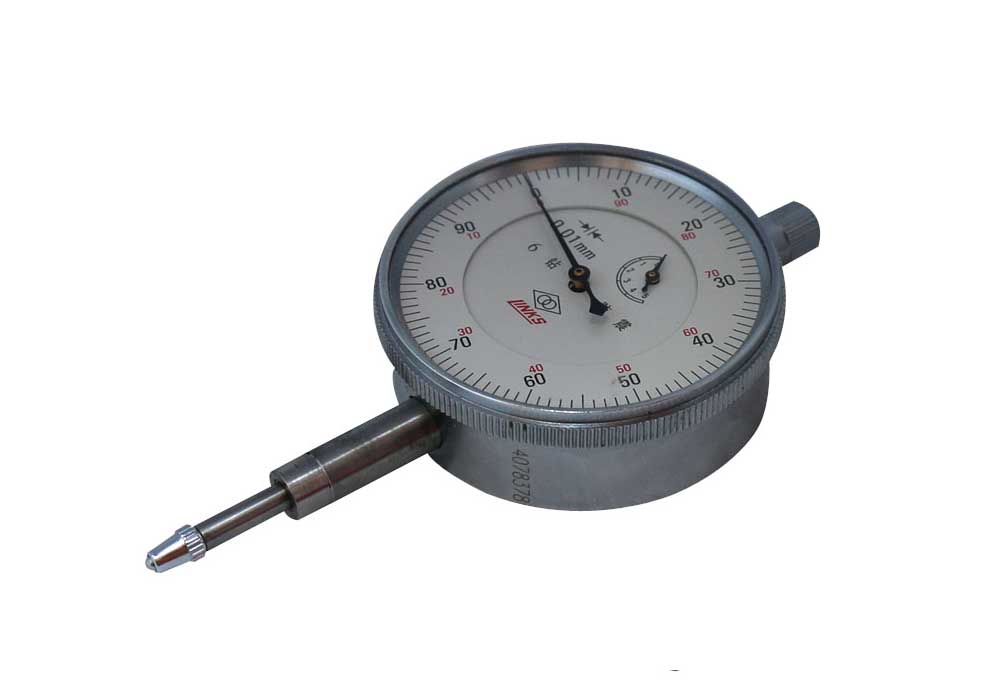

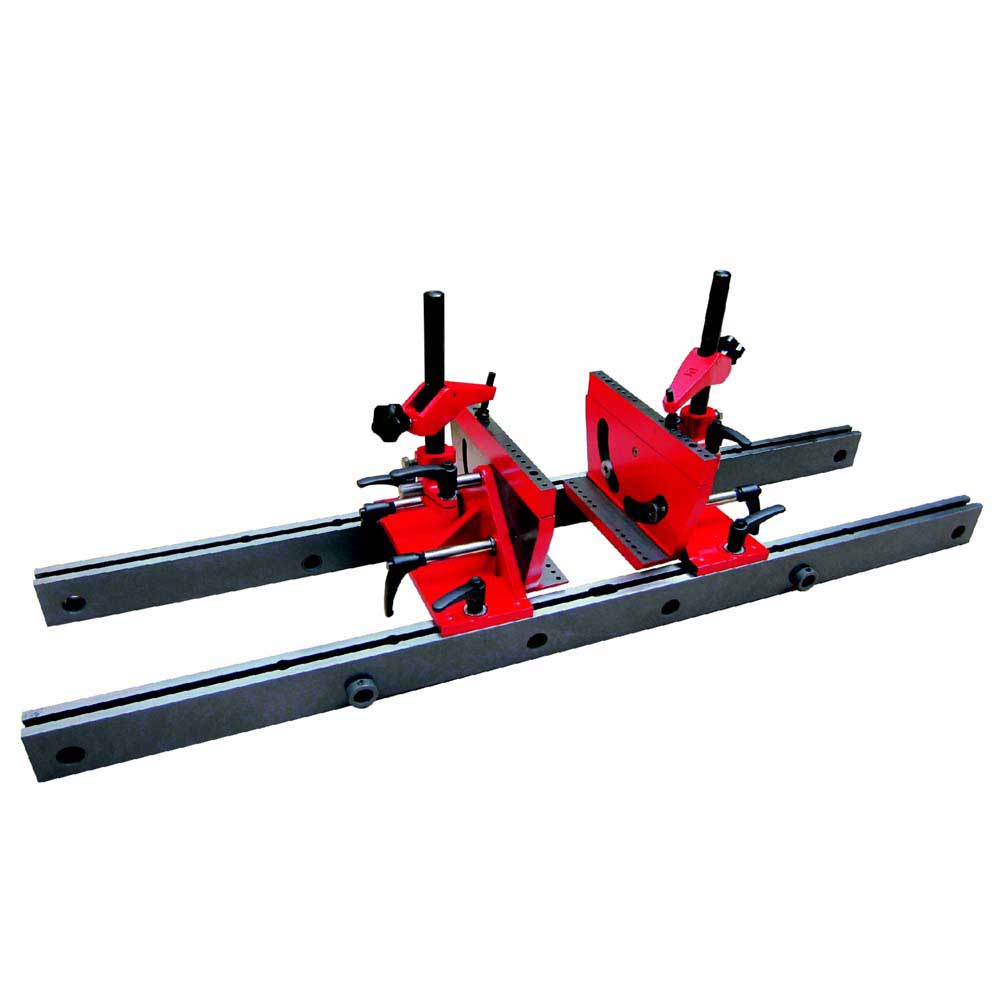

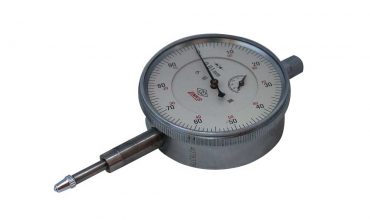

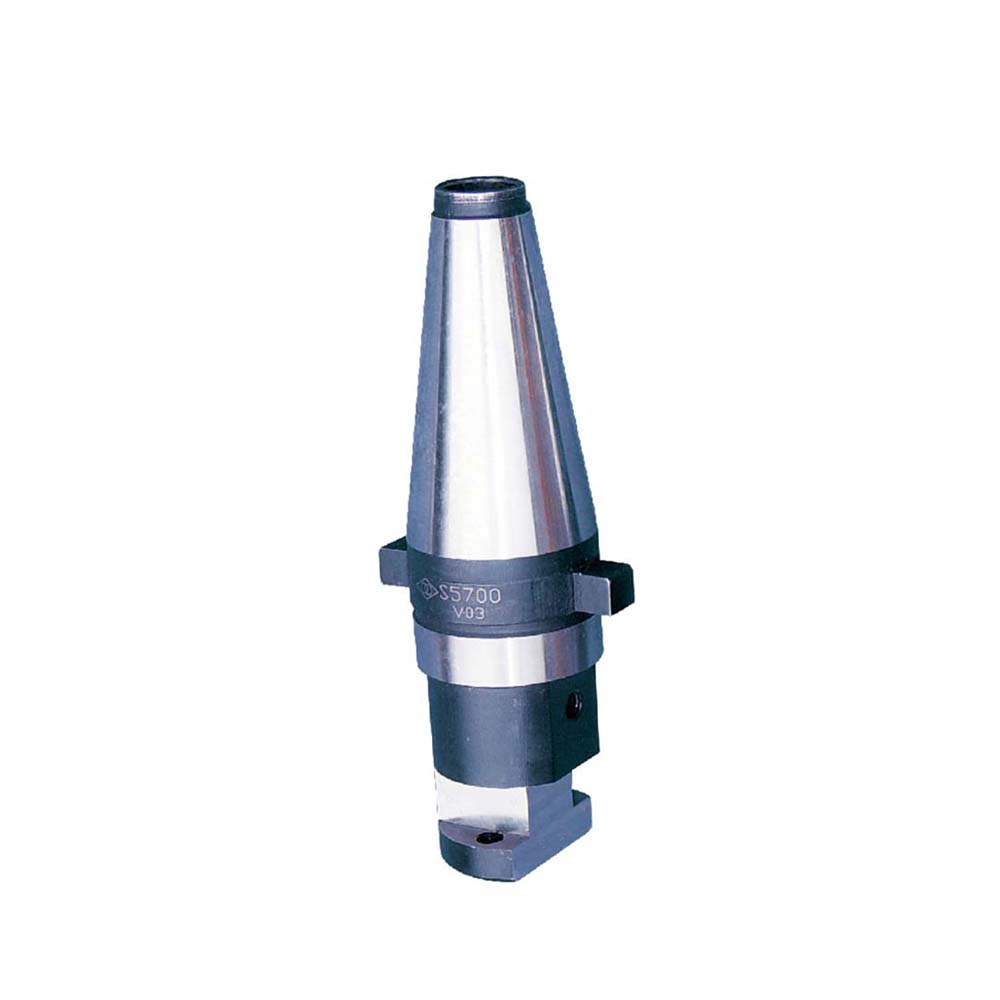

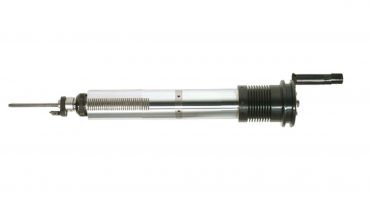

Accessory
