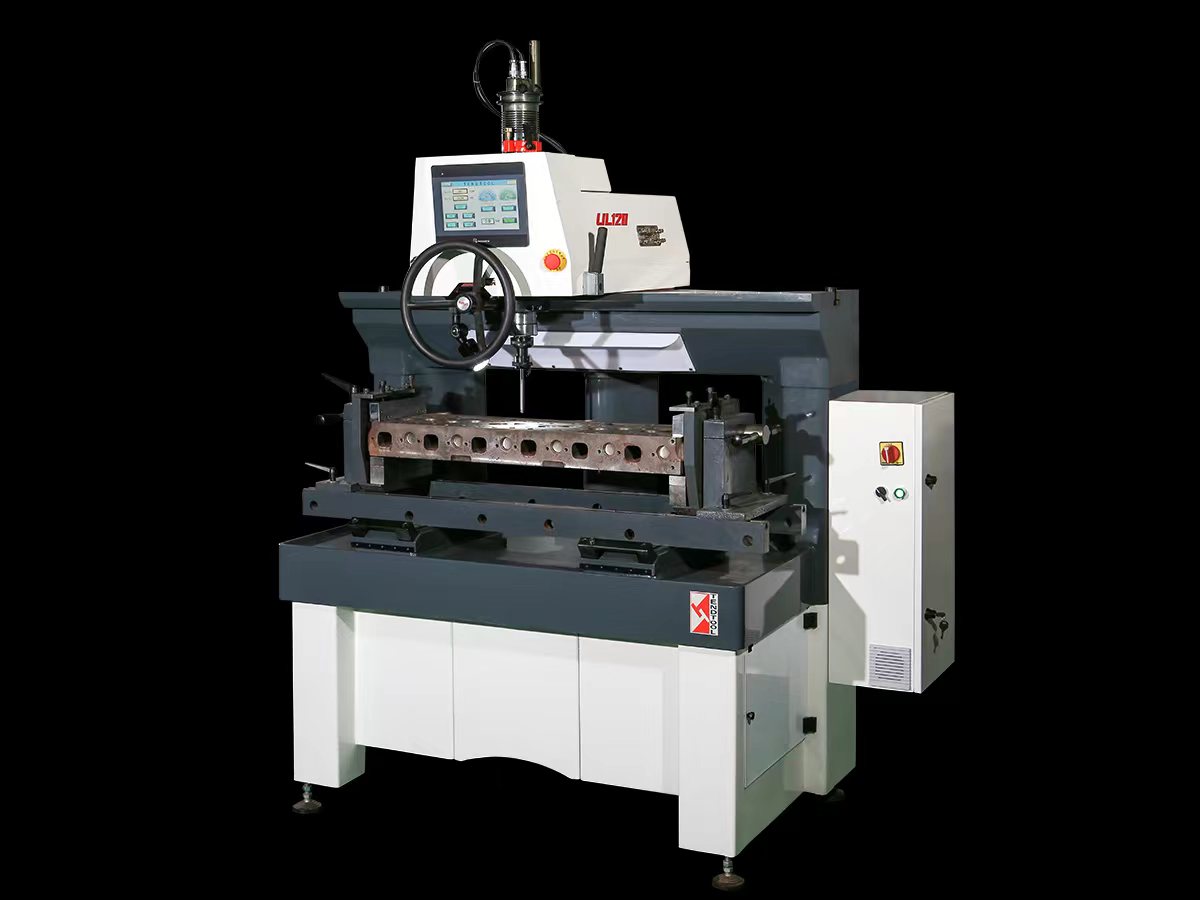

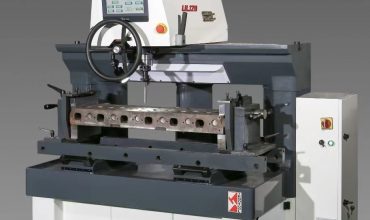

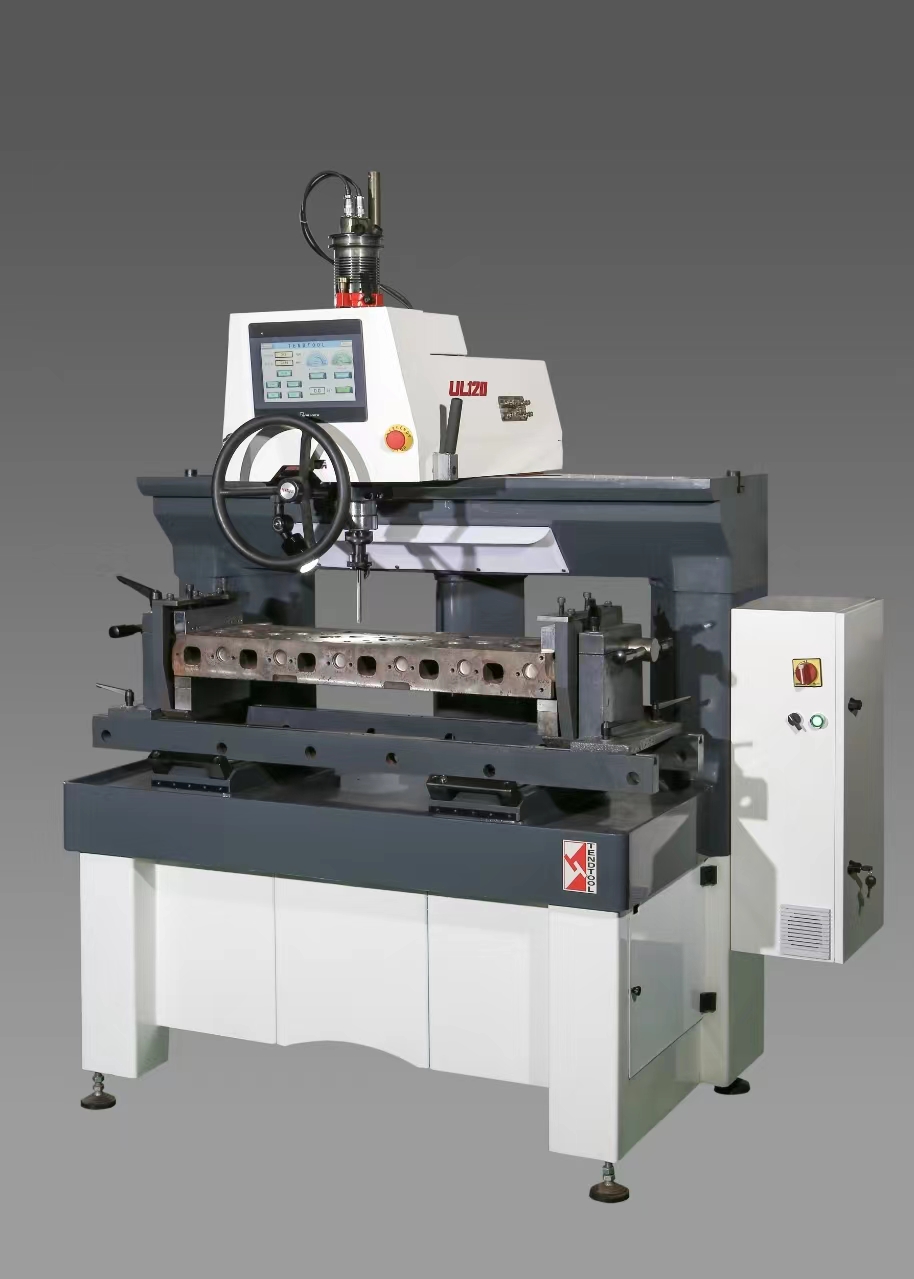

High-efficiency, high-precision, self-adaptive, touch screen machine’ for cylinder head
◆UL series machine is a new developped touch screen version

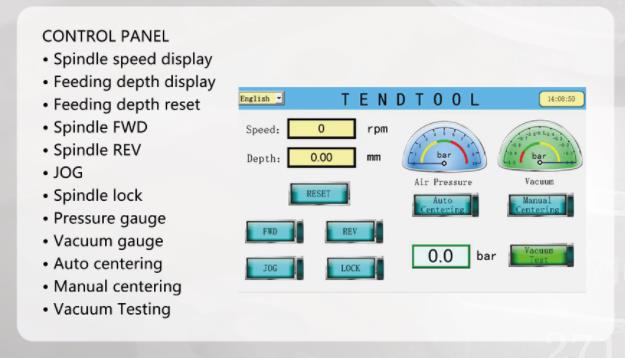

◆Touch screen interface is more striking, operate integrated and humanization

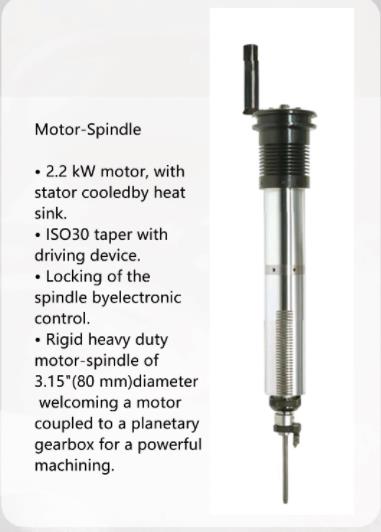

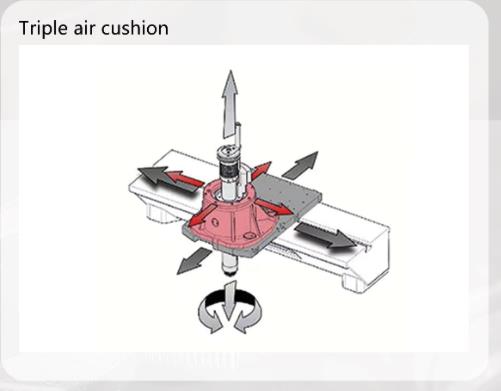

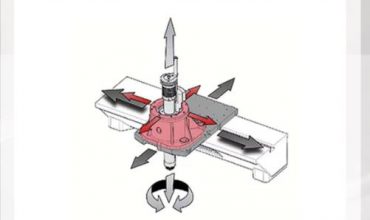

◆Customized high performance control system, self- adaptive triple Air cushion workhead and build – in high torque spindle motor to achieve the high precision, more powerful and consistency for all seats cutting.

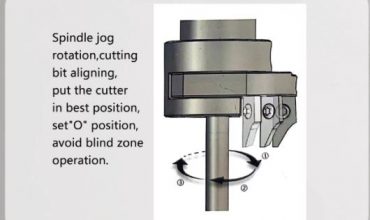

◆The feature of “JOG” easy control the spindle rotated,cutting bit stop in any position to avoid the blind area for safe operation
◆”Auto-centering”and “Manual- centering” to make centering more efficiency to be suitable of cutting
◆Upgrade handle to control workhead and clamping system air-float
◆”Clamping System”assure the workpiece rotationin-45°to+45° More faster and fastening.
| Machine capabilities | ||
|---|---|---|
| Max. length of the cylinder head | inch | Unlimited |
| Max. width of the cylinder head | inch | 19.7 |
| Max. height of the cylinder head | inch | 17.7 |
| Crosswise work piece tilting | degrees | +45°-15° |
| Machining capacity dia. (min-max) | Фinch | 0.6-4.7 |
| Lengthwise | inch | 39 |
| Crosswise | inch | 1.6 |
| Sphere-Cylinder travel | inch | 0.4 |
| Max.spindle incination | degrees | 5 |
| Spindle Travel | inch | 8 |
| Power of the spindle | Kw | 2.2 |
| Spindle rotation speed | rpm | 0-1000 |
| Electric supply | 380V/50Hz3Ph | |
| Air pressure | psi | 87 |
| Max. air flow | l/mn -CFM | 11 |
| Level of noise at 400 RPM | dba | 72 |
| Level of noise at 1200 RPM | dba | 82 |
| Net weight (approx.) | 1bs | 3300 |
| Machine space requirements | ||
| Length | inch | 68.9 |
| Width | inch | 45.3 |
| Height | inch | 86.6 |
