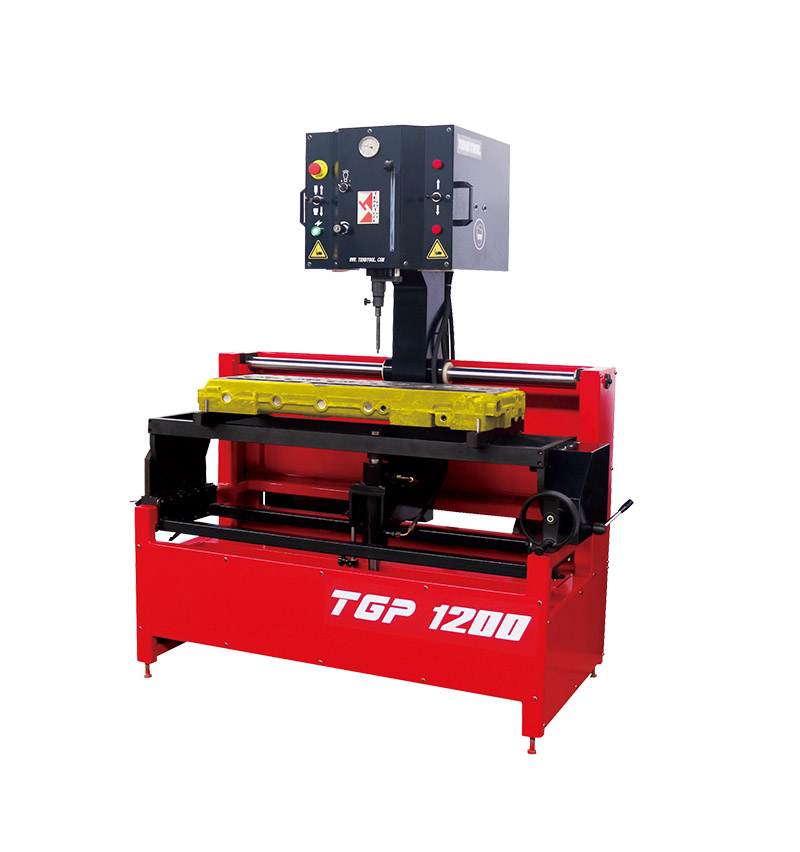

Hydraulic Valve Guide Press Machine TGP1200

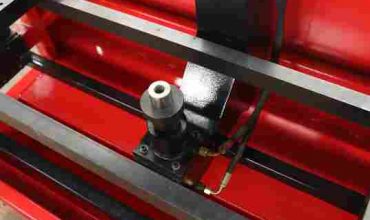

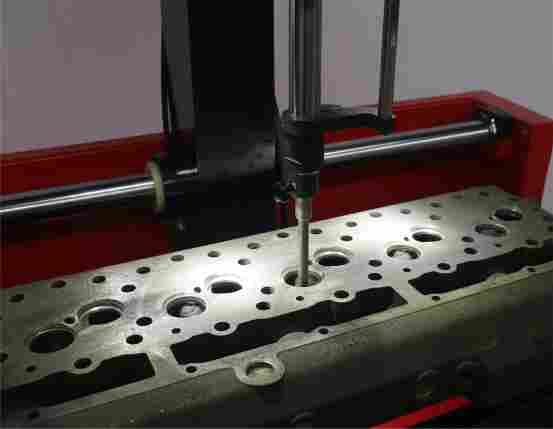

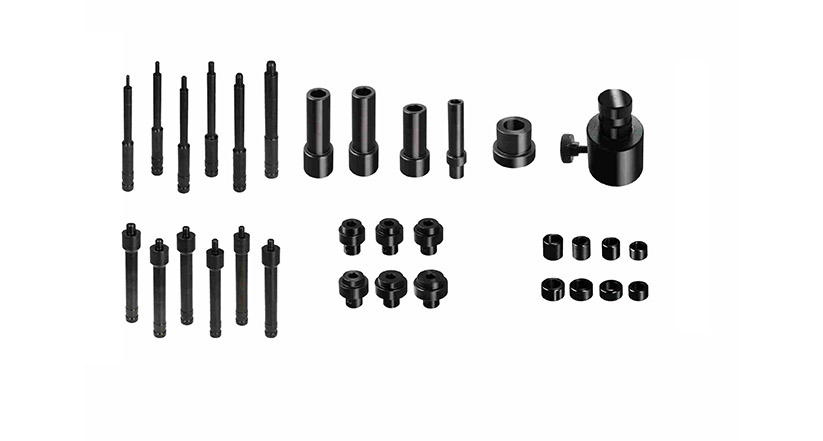

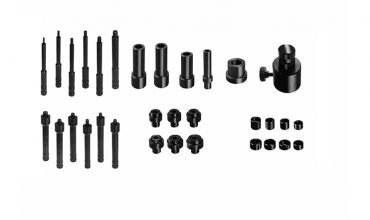

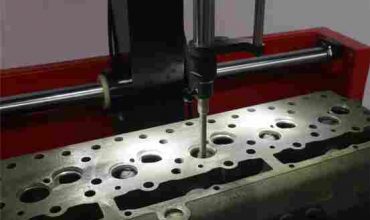

For easy, safe and fast valve guide replacement. Reduces operator fatigue and costly operator error. The bench is equipped with a hydraulic cylinder for operation also on engine valves assembly and disassembling. Standard equipment includes tools for valve guide replacement (dismounting pilots), standard set of installation tools, and set of different size of compressing foot for any application.
| SPECIFICATIONS | |
|---|---|
| Working table length | 1200mm |
| Transverse movement | 1100mm |
| Longitudinal movement | 150mm |
| Upper cylinder movement | 230mm |

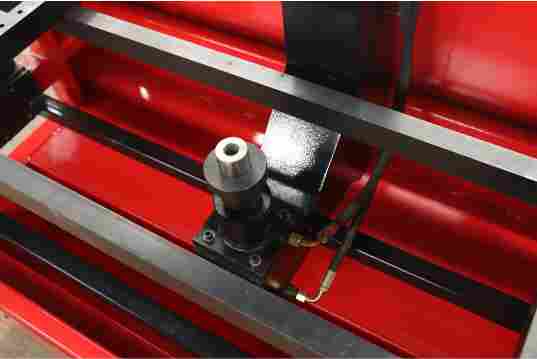

| Lower cylinder movement | 140mm |
| Table rotation | 50 degree |
| Working pressure | 200bar |
| Adjustable pressure | 0-200bar |

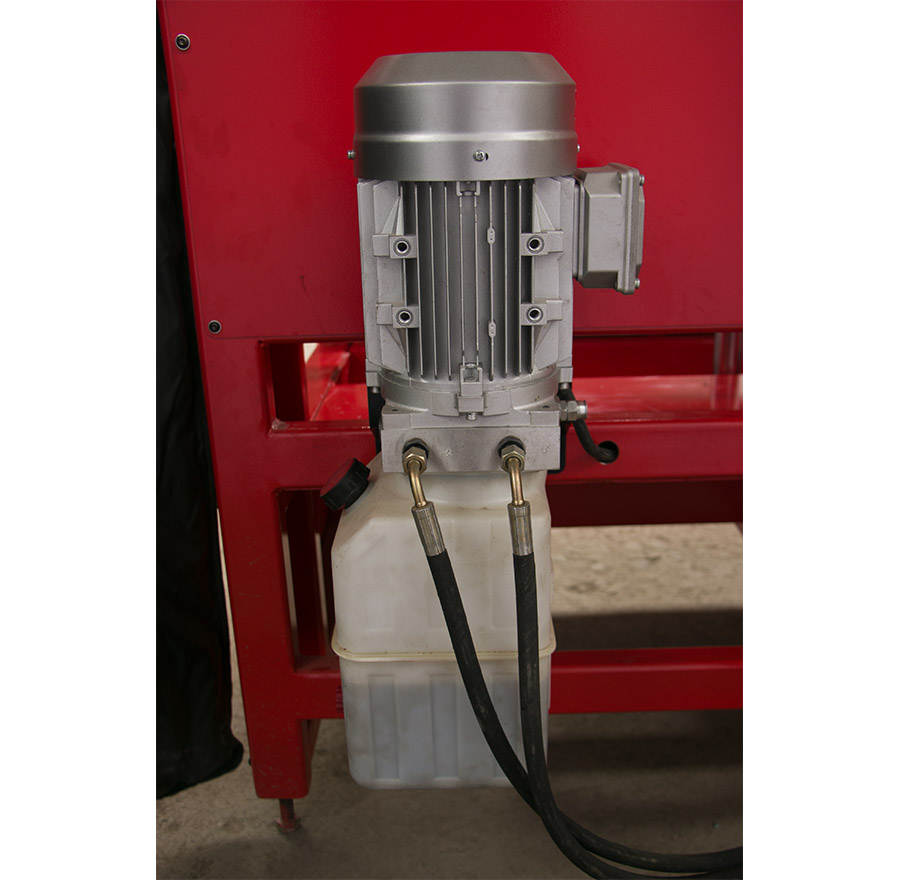

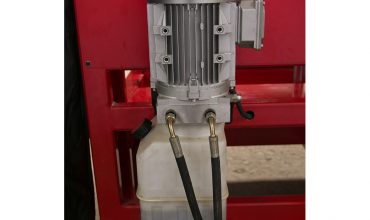

| Motor power | 1.5kw |
| Oil tank | 9 |
| Power supply | 380V, 50HZ, 3PH |
| Machine Dimension | |
| Length | 1370mm |
| Width | 930mm |
| Hight | 1850mm |
| Weight | 400kg |
